Technical data-sheet
MW-213 16A 3 PIN Connector
Makewell Tech’s 16A 3 Pin Connector delivers robust, secure, and safe power connections for industrial and commercial applications. Built for performance and reliability.
When you need an electrical connector that can stand up to demanding applications without compromising safety or performance, the Makewell Tech 16A 3 Pin Connector is the professional’s choice. Built to deliver consistent power connections in industrial, commercial, and workshop environments, this connector combines high-quality materials, precision engineering, and safety-focused design.
Engineered for Demanding Applications
Unlike standard household connectors, the Makewell Tech 16A 3 Pin Connector is specifically designed for higher current requirements and frequent, heavy-duty use. Whether you are powering machinery, tools, or lighting systems, this connector provides a secure and stable connection to keep your operations running smoothly.
Key Features and Advantages
- 16A Current Capacity
This connector safely handles up to 16 amps of current, making it suitable for medium-duty electrical loads commonly found in industrial environments.
- Three-Pin Configuration
Featuring dedicated Live, Neutral, and Earth pins, the connector ensures safe grounding, reducing the risk of electrical faults and improving user safety.
- High-Quality Materials
Manufactured from industrial-grade thermoplastic, this connector offers excellent impact resistance, thermal stability, and protection against wear.
- Ergonomic and User-Friendly Design
The body of the connector includes a textured surface for easy handling and secure grip during connection and disconnection—even while wearing gloves.
- Secure Locking Mechanism
A reliable locking system ensures the connector remains engaged with compatible plugs or sockets, preventing accidental disconnection or power loss.
- Compliance with International Standards
Built to meet IEC/EN 60309 standards, this connector is trusted across industries for its safety and interoperability.
Built for Safety
Electrical safety is a critical priority in any industrial environment. The Makewell Tech 16A 3 Pin Connector includes essential safety features:
- Earth Pin Grounding: Protects against electrical shock and fault currents.
- Heat-Resistant Housing: Prevents deformation during extended use under load.
- Strain Relief: An integrated cable clamp protects internal wiring from tension and mechanical stress.
- Clear Terminal Markings: Reduce installation errors and ensure correct wiring.
These design elements help prevent accidents, reduce downtime, and protect both workers and equipment.
Typical Applications
The Makewell Tech 16A 3 Pin Connector is used across a broad range of industries and applications, including:
- Manufacturing Facilities: Connecting industrial equipment, machinery, and production lines.
- Construction Sites: Supplying power to portable tools, lighting systems, and temporary installations.
- Workshops: Powering heavy-duty tools, compressors, and test equipment.
- Warehouses and Logistics Centers: Operating material handling and storage systems.
- Event and Outdoor Installations: Providing safe, reliable connections for staging, lighting, and catering equipment.
- Agriculture: Running irrigation pumps, processing equipment, and mobile machinery.

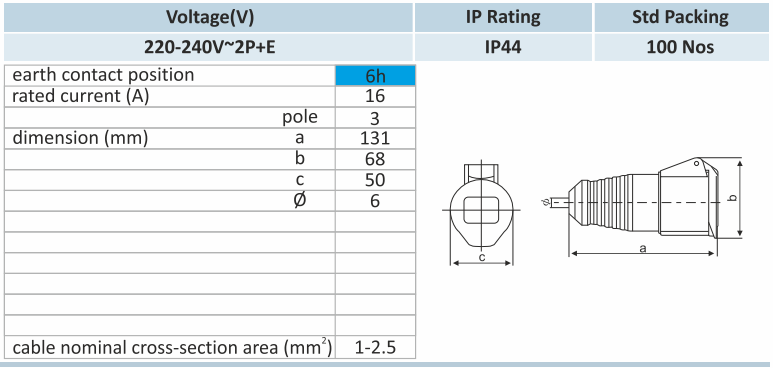

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 16A
- Voltage: 220–250V (region dependent)
- Pins: 3 (Live, Neutral, Earth)
- Housing Material: High-impact thermoplastic
- Ingress Protection: IP44 (protected against dust and splashing water) or higher (depending on the model)
- Operating Temperature: -25°C to +40°C
- Cable Entry: Glanded with strain relief
- Standards Compliance: IEC/EN 60309
- Color Options: Standard industrial colors (commonly blue or red for voltage coding)
Easy Installation Process
Installing the Makewell Tech 16A 3 Pin Connector is simple and fast:
- Prepare the Cable
Carefully strip the insulation, exposing conductors without nicking wires.
- Connect Conductors
Insert each wire into its clearly marked terminal (L, N, E).
- Secure Terminals
Tighten terminal screws to ensure strong, vibration-resistant connections.
- Fit Strain Relief
Adjust the cable clamp to prevent pull forces from affecting the terminals.
- Assemble Housing
Close the connector housing evenly to maintain sealing integrity.
- Test Before Use
Use a continuity tester to verify correct wiring and grounding.
Important: Installation should be performed by a qualified professional to comply with local regulations.
Advantages Over Conventional Connectors
Choosing the Makewell Tech 16A 3 Pin Connector offers several benefits over lower-grade alternatives:
- Greater Reliability
Industrial-grade construction and robust terminals minimize the chance of connection failures and electrical faults.
- Improved Safety
Earth pin grounding and heat-resistant materials help prevent overheating, shorts, and shocks.
- Longer Service Life
Engineered to withstand frequent use and harsh environments.
- Professional Presentation
A rugged, compliant connector improves your credibility and safety compliance during inspections.
- Compatibility
Easily pairs with other IEC/EN 60309-compliant components.
Maintenance and Care
To ensure your connector continues to perform reliably:
- Inspect Regularly: Look for signs of wear, damage, or discoloration.
- Clean Periodically: Remove dust, dirt, and debris to maintain contact integrity.
- Verify Tightness: Check terminal screws and strain relief clamps.
- Replace if Damaged: Never operate damaged connectors.
Regular maintenance helps prevent downtime and extends the life of your equipment.
Experience the Makewell Tech Difference
At Makewell Tech, we are committed to delivering safe, reliable, and high-performance electrical solutions for professionals who demand quality. The 16A 3 Pin Connector reflects our dedication to innovation, safety, and durability—helping you power your projects with confidence.
Order today and see why thousands of professionals trust Makewell Tech for their industrial power needs.
For bulk orders, custom configurations, or technical advice, our expert team is ready to assist.
