Technical data-sheet

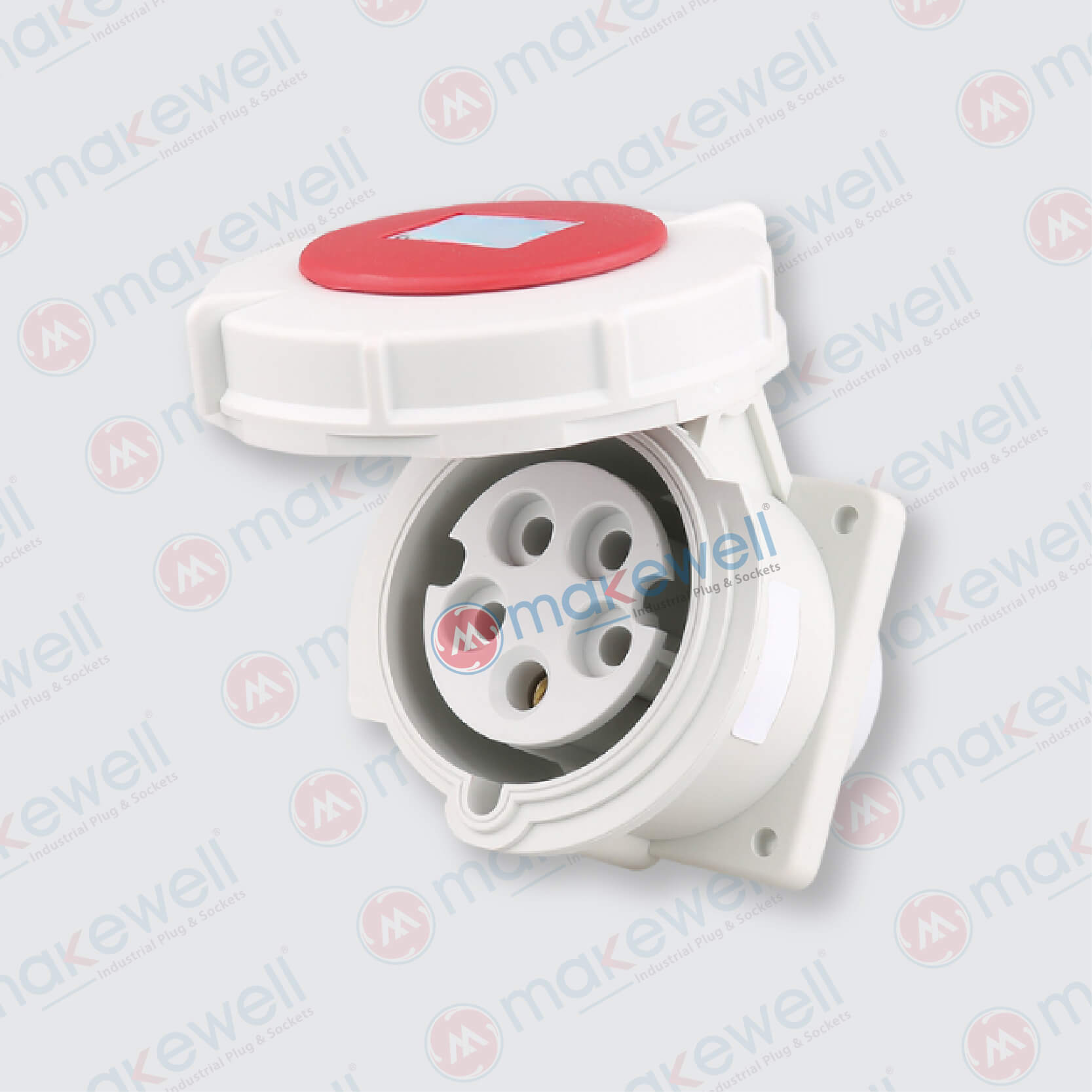

MW-3152 16A 5 PIN Panel Socket
Makewell Tech’s 16A 5 Pin Panel Socket delivers safe, reliable three-phase power distribution in industrial panels and control enclosures. Built tough for consistent performance.
The Makewell Tech 16A 5 Pin Panel Socket is engineered to deliver safe, reliable, and efficient power connections where you need them most—in your control panels, switchboards, and machinery enclosures. Designed to support medium-duty three-phase power requirements, this rugged panel socket keeps your operations running safely and efficiently.
Built for High-Performance Power
With a 16-amp current rating, this panel socket is ideal for connecting equipment and systems that demand stable, uninterrupted power. Whether you are powering industrial machines, workshop tools, or production equipment, it provides dependable performance without overheating or compromising safety.
The robust housing is made of high-impact thermoplastic, delivering exceptional resistance to mechanical stress, vibrations, chemicals, and temperature extremes. The secure terminal design maintains consistent electrical contact, even in demanding industrial environments.
Key Features and Benefits
- 16A Current Capacity
Provides stable power delivery for medium-duty three-phase loads, ensuring equipment operates reliably. - 5 Pin Configuration
Includes three phase pins (L1, L2, L3), a neutral pin, and an earth pin for balanced power distribution and proper grounding compliant with IEC/EN 60309 standards. - Durable Construction
Impact-resistant thermoplastic housing protects against wear, impacts, and environmental exposure. - Ingress Protection
Rated IP44 for effective protection against dust and splashing water, making it suitable for semi-outdoor use and harsh industrial environments. - Secure Connection Mechanism
Precision-engineered contacts ensure a tight, vibration-resistant fit with compatible plugs, minimizing accidental disconnections. - Easy Installation
Clear terminal markings and an ergonomic layout reduce installation time and help prevent wiring errors.
Typical Applications
Makewell Tech’s 16A 5 Pin Panel Socket is trusted in a variety of applications across industries, including:
- Manufacturing Plants: Distributing three-phase power to machinery, production lines, and conveyors.
- Workshops: Connecting welding equipment, compressors, and portable tools.
- Warehouses: Powering automated storage and material handling systems.
- Construction Sites: Supplying safe connections to lighting systems and heavy-duty tools.
- Agriculture: Running irrigation pumps, dryers, and processing machinery.

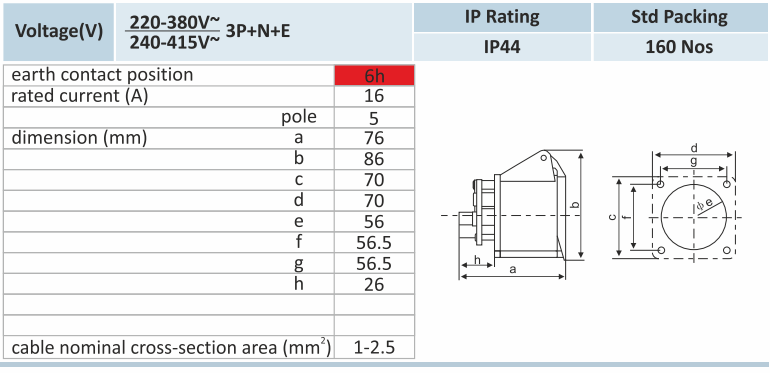

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 16A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
- Mounting: Panel installation with secure fixing points
Easy Installation
Installing the Makewell Tech 16A 5 Pin Panel Socket is quick and straightforward:
- Prepare the Panel: Cut an opening to the specified dimensions.
- Connect the Terminals: Strip the insulation and insert each conductor into the clearly marked terminals (L1, L2, L3, N, E).
- Secure the Terminals: Tighten screws to create a reliable connection.
- Mount the Socket: Fix it securely to the panel using appropriate fasteners.
- Test Connections: Always verify continuity and correct wiring before energizing.
- Important: Installation should always be performed by a qualified electrician to ensure safety compliance.
Why Choose Makewell Tech?
Makewell Tech combines engineering excellence with a commitment to durability and safety. The 16A 5 Pin Panel Socket is your trusted solution for powering equipment reliably—helping you maintain productivity and avoid costly downtime.
