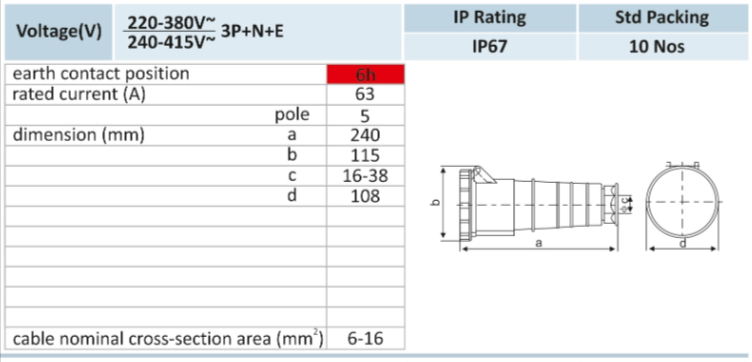

Technical data-sheet
MW-235 63A 5 PIN Connector
Makewell Tech’s 63A 5 Pin Connector delivers high-capacity, safe, and reliable three-phase power connections for demanding industrial environments. Engineered for durability and performance.
The Makewell Tech 63A 5 Pin Connector is designed for professionals who require high-capacity, safe, and durable power connections in challenging industrial environments. Built to support continuous operation and heavy electrical loads, this connector ensures your machinery and equipment function reliably without interruption.
Engineered for Heavy-Duty Performance
With a 63-amp current rating, this connector easily powers large three-phase equipment, including motors, industrial ovens, production lines, and heavy-duty tools. The robust construction ensures consistent electrical performance even in harsh conditions, protecting your investment and improving operational efficiency.
Manufactured from industrial-grade thermoplastic, the housing is resistant to impact, abrasion, and chemical exposure. This design helps the connector maintain structural integrity and electrical safety in factories, construction sites, warehouses, and outdoor installations.
Key Features and Benefits
- 63A High-Current Capacity
Handles demanding loads safely and reliably, delivering steady power to critical equipment without overheating. - 5 Pin Configuration
Three phase pins (L1, L2, L3), neutral, and earth pins provide balanced power distribution and safe grounding, in line with IEC/EN 60309 standards. - Rugged Thermoplastic Housing
Withstands impacts, vibration, and harsh conditions, ensuring a long lifespan in industrial settings. - IP44 Splash-Proof Protection
Ingress protection guards internal connections against dust and splashing water, supporting safe operation in semi-outdoor environments. - Secure Connection Mechanism
Precision-engineered contacts and locking features create a tight, vibration-resistant fit with compatible plugs and sockets, reducing the risk of accidental disconnections. - User-Friendly Design
Clear terminal markings and ergonomic construction make wiring, installation, and maintenance straightforward and efficient.
Applications Across Industries
The Makewell Tech 63A 5 Pin Connector is trusted across diverse applications, including:
- Manufacturing: Powering conveyor systems, industrial ovens, and large machinery.
- Construction Sites: Connecting high-demand equipment, site power distribution panels, and heavy-duty tools.
- Warehouses: Operating forklifts, high-capacity chargers, and automated material handling systems.
- Workshops: Running welders, compressors, and large-scale production tools.
- Agriculture: Powering grain dryers, irrigation pumps, and processing equipment.
Technical Specifications
- Brand: Makewell Tech
- Current Rating: 63A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
Simple Installation
Installing the Makewell Tech 63A 5 Pin Connector is quick and reliable:
- Prepare the Cable: Strip insulation to expose conductors.
- Wire the Terminals: Insert each conductor into clearly marked terminals (L1, L2, L3, N, E) and tighten screws securely.
- Assemble Housing: Close and lock the housing to maintain protection.
- Test the Connection: Use a continuity tester to verify wiring before energizing.
- Important: Installation should always be carried out by a qualified electrician to comply with safety regulations.
Why Choose Makewell Tech?
At Makewell Tech, we engineer products that combine rugged durability, safety, and consistent performance. The 63A 5 Pin Connector is your reliable solution for demanding three-phase power applications—helping you keep operations running smoothly, day after day.
