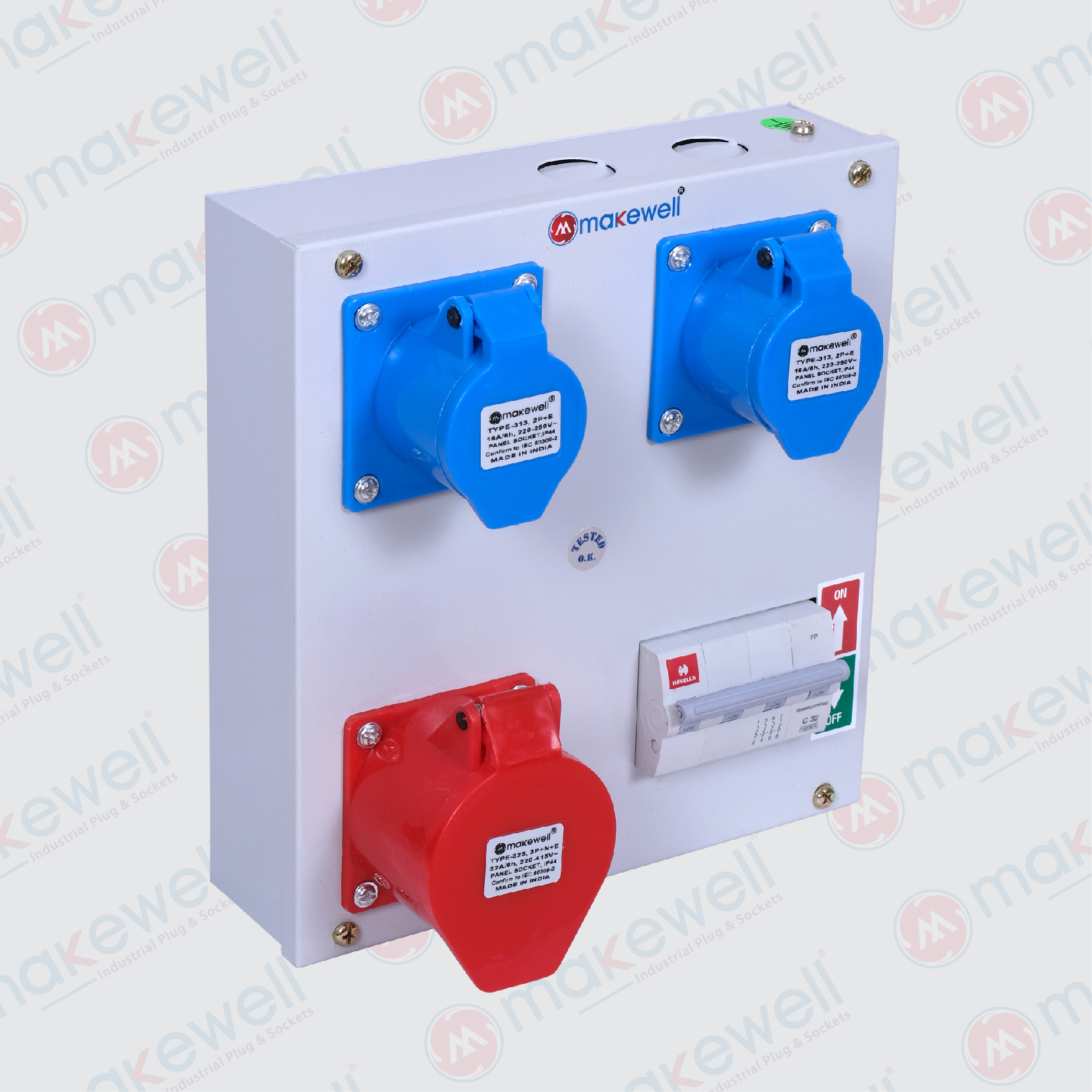

3+1 Metal Socket Box
Robust 3+1 metal socket box designed to support three heavy-duty industrial sockets and one auxiliary unit for efficient, organized power distribution in industrial environments.
High-Performance Industrial Enclosure for Multi-Socket Power Distribution
The 3+1 Metal Socket Box by Makewell Tech is engineered for environments where organized and reliable electrical distribution is essential. It offers space for three industrial-grade sockets and one auxiliary unit, allowing operators to power multiple machines while integrating a control or protection feature—all from a single box.
Constructed with high-quality mild or galvanized steel, the enclosure is designed for durability and finished with corrosion-resistant powder coating to withstand industrial wear, dust, and humidity. The 3+1 configuration offers maximum flexibility for factory floors, workshops, service panels, and outdoor generator units where structured power access is key.
The auxiliary slot can accommodate a switch, pilot lamp, MCB, or an extra socket, offering customization based on specific operational requirements. The enclosure supports standard industrial sockets from 16A to 63A, in both 3-pin and 5-pin variants.
Key Features and Benefits
3 Main Sockets + 1 Auxiliary Slot
Connect up to three industrial devices and add a switch, lamp, MCB, or extra socket.
Heavy-Duty Construction
Fabricated using mild steel or galvanized steel for superior strength and impact resistance.
Customizable Auxiliary Integration
Choose from MCBs, indicator lamps, push buttons, or additional sockets for added utility.
Socket Compatibility
Supports 16A / 32A / 63A sockets in 3-pin or 5-pin configurations.
Optional IP Protection
Available in IP44 / IP55 / IP65 variants for use in harsh or semi-outdoor environments.
Easy Mounting and Maintenance
Pre-punched holes for quick installation; internal layout ensures cable separation and safe wiring.
Standards Compliant
Built in accordance with IEC/EN 60309 and Indian IS standards for industrial electrical equipment.
Typical Applications
- Industrial Manufacturing Lines – Operate three machines with one control slot
- Workshops & Garages – Power tools and integrate emergency cut-off or breaker
- Construction Sites – Central power access with safety features
- Warehouse & Packaging Units – Distribute power to scanners, conveyors, and panels
- Temporary Installations – Mobile generator units and event-based power access
Technical Specifications
- Brand: Makewell Tech
- Product Name: 3+1 Metal Socket Box
- Material: Mild steel / galvanized steel
- Finish: Powder-coated (rust and corrosion resistant)
- Sockets Supported: 3 industrial sockets (16A / 32A / 63A)
- Auxiliary Unit: 1 slot (customizable: switch, lamp, socket, or MCB)
- Ingress Protection (Optional): IP44 / IP55 / IP65
- Voltage Support: 230V / 415V AC
- Mounting: Wall, panel, or pole-mountable
- Operating Temperature: -25°C to +60°C
- Standards: IEC/EN 60309, IS Electrical Safety Compliant
Installation Guidelines
- Mount the Box: Fix to wall or panel using pre-drilled slots
- Fit Sockets & Auxiliary: Install securely using locking clamps or bolts
- Connect Wiring: Ensure proper phase, neutral, and earthing with safe cable management
- Test System: Check for insulation resistance, voltage continuity, and mechanical security
- Seal and Commission: Close the box and power up after final safety check
Why Choose Makewell Tech?
Makewell Tech specializes in high-quality industrial power solutions that combine strength, safety, and adaptability. The 3+1 Metal Socket Box is perfect for professionals who need multi-machine connectivity with added control or protection — all in one enclosure. It’s a trusted choice across industries where reliable power access is a non-negotiable.
