MW-225 32A 5 PIN Connector

The Makewell Tech 32A 5 Pin Connector is engineered to deliver consistent, safe, and high-capacity power connections in the most demanding environments. From manufacturing plants and warehouses to construction sites and workshops, this heavy-duty connector is trusted by professionals who require reliable performance without compromise.

Built for High-Current Demands

Rated for 32 amps, this connector supports three-phase electrical systems where balanced, uninterrupted power delivery is critical. It provides secure connections for large machinery, motors, and high-capacity tools that operate under continuous load.

Crafted from industrial-grade thermoplastic, the housing is resistant to impacts, abrasion, and harsh conditions. The robust design also prevents deformation during prolonged use, ensuring long service life and reducing downtime.

Key Features and Benefits

• 32A Current Capacity
  Effortlessly supports heavy-duty electrical loads, ensuring your equipment operates at peak performance.
• 5 Pin Configuration
  Features three phase pins (L1, L2, L3), one neutral, and one earth pin, enabling balanced three-phase power distribution and full grounding protection.
• Rugged Construction
  Impact-resistant thermoplastic housing withstands vibration, rough handling, and challenging work environments.
• Secure Connection Mechanism
  Precision-engineered contacts deliver a tight, low-resistance fit with compatible plugs and sockets, reducing the risk of accidental disconnections.
• Ingress Protection
  Available in IP44 and higher-rated models to safeguard against dust and splashing water, perfect for industrial and semi-outdoor use.
• Easy Installation and Handling
  Ergonomic grips and clearly labeled terminals make installation fast, safe, and hassle-free.

Applications Across Industries

Makewell Tech’s 32A 5 Pin Connector is trusted in a wide range of applications:

• Manufacturing Plants: Connecting production equipment, conveyor systems, and three-phase machinery.
• Workshops: Powering welders, industrial compressors, and heavy-duty tools.
• Warehouses: Running automated material handling systems and chargers.
• Construction Sites: Supplying safe power to lighting rigs, large tools, and site installations.
• Agriculture: Operating irrigation pumps and processing equipment safely.

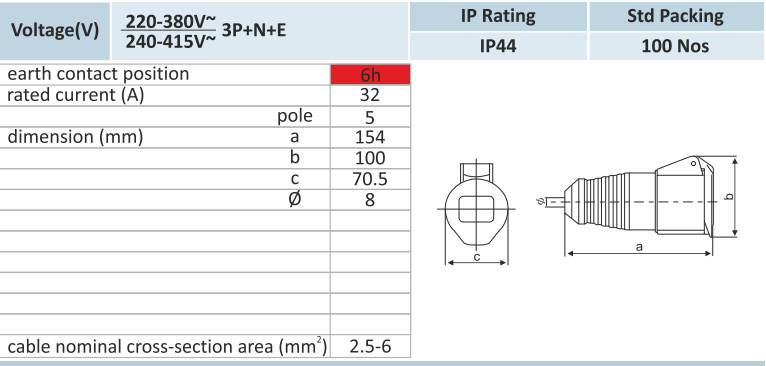

Technical Specifications

1. Brand: Makewell Tech
2. Current Rating: 32A
3. Voltage: 380–415V (three-phase)
4. Pins: 5 (3 phase + neutral + earth)
5. Material: High-impact thermoplastic
6. Ingress Protection: IP44 or higher
7. Operating Temperature: -25°C to +40°C
8. Standards Compliance: IEC/EN 60309

Simple Installation

Installing the Makewell Tech 32A 5 Pin Connector is straightforward:

• Prepare the Cable: Strip insulation to expose the conductors.
• Wire the Terminals: Insert each conductor into its clearly marked terminal (L1, L2, L3, N, E).
• Tighten Connections: Securely fasten screws to maintain reliable contact.
• Assemble the Housing: Close and secure the housing to maintain ingress protection.
• Test the Connection: Always verify wiring before powering up.
• Note: Installation should be carried out by a qualified electrician to meet safety standards.

Why Choose Makewell Tech?

At Makewell Tech, we are dedicated to producing robust, professional-grade power solutions that deliver consistent performance and safety. The 32A 5 Pin Connector combines superior materials, smart design, and certified quality—helping you power your operations with confidence.
