MW-2132 16A 3 PIN Connector

The Makewell Tech 16A 3 Pin Connector is designed to deliver safe, dependable, and efficient power connections in demanding industrial and commercial settings. Whether installed in a workshop, factory, warehouse, or construction site, this connector provides stable power distribution to ensure smooth operations.

Engineered for Professional Use

With a 16A current rating, this connector is ideal for supplying power to medium-duty equipment and machinery that require continuous, reliable electricity. From power tools and lighting systems to small production equipment, this connector guarantees stable performance without overheating or power loss.

Its robust thermoplastic housing is engineered to withstand impacts, vibrations, and temperature fluctuations. This ensures that your connections remain secure and protected, even in rugged environments.

Key Features and Benefits

• 16A Current Capacity
  Supports a variety of industrial and commercial devices with safe, stable power up to 16 amps.
• 3 Pin Configuration
  Includes live, neutral, and earth pins, offering safe grounding and compliance with IEC/EN 60309 standards.
• Durable Thermoplastic Housing
  Resistant to impacts, abrasion, and harsh working conditions, providing a long service life.
• Ingress Protection
  IP44-rated design shields internal components from dust and water splashes, supporting semi-outdoor use.
• Secure Connection Mechanism
  Precision-engineered contacts create a tight, vibration-resistant connection with compatible plugs and sockets.
• Easy Installation
  Ergonomic grips and clearly labeled terminals simplify wiring, reduce setup time, and help prevent errors.

Typical Applications

Makewell Tech’s 16A 3 Pin Connector is trusted in a variety of industries and use cases, including:

• Manufacturing Facilities: Supplying power to assembly lines, small machines, and production tools.
• Workshops: Connecting portable power tools, compressors, and lighting systems.
• Warehouses: Powering chargers, handling equipment, and maintenance devices.
• Construction Sites: Providing reliable connections for temporary site installations.
• Commercial Buildings: Supporting service equipment and maintenance operations.

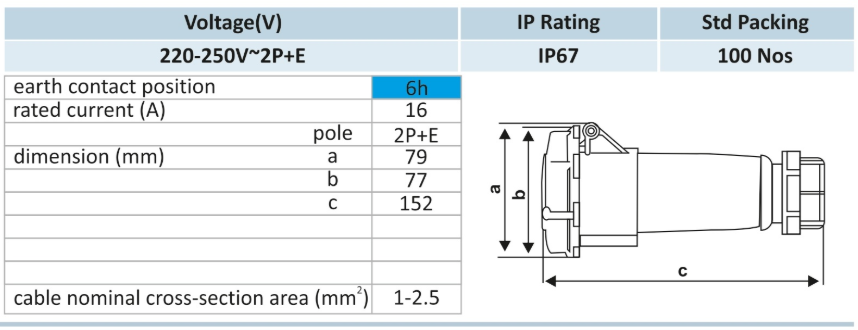

Technical Specifications

1. Brand: Makewell Tech
2. Current Rating: 16A
3. Voltage: 220–250V
4. Pins: 3 (Live, Neutral, Earth)
5. Material: High-impact thermoplastic
6. Ingress Protection: IP44
7. Operating Temperature: -25°C to +40°C
8. Standards Compliance: IEC/EN 60309

Easy and Safe Installation

Installing the Makewell Tech 16A 3 Pin Connector is fast and secure:

• Prepare Cable: Strip insulation to expose conductors.
• Connect Terminals: Insert conductors into clearly marked terminals (L, N, E) and tighten screws.
• Assemble Housing: Close the housing and engage the locking mechanism to maintain protection.
• Test Connections: Use a continuity tester to verify correct wiring before energizing.
• Important: Installation should be performed by a qualified electrician to ensure safety and compliance.

Why Choose Makewell Tech?

At Makewell Tech, we are dedicated to delivering high-quality, industrial-grade electrical products that professionals trust. The 16A 3 Pin Connector combines durability, safety, and ease of use—keeping your projects powered and your operations running smoothly every day.
