Technical data-sheet
MW-135 63A 5 PIN Wall Socket
Makewell Tech’s 63A 5 Pin Wall Socket delivers safe, high-capacity three-phase power connections for demanding industrial and commercial applications. Built rugged for reliable performance.
The Makewell Tech 63A 5 Pin Wall Socket is engineered for professionals who require safe, high-capacity power connections in demanding environments. Built to handle heavy loads and continuous operation, this socket ensures reliable three-phase power distribution for machinery, tools, and equipment in industrial and commercial settings.
Designed for High-Performance Applications
With a 63-amp current rating, this wall socket is ideal for installations that power large motors, industrial ovens, high-capacity chargers, and other energy-intensive equipment. Its robust housing is crafted from industrial-grade thermoplastic, providing superior resistance to impacts, heat, vibration, and chemical exposure.
The IP44 ingress protection keeps internal connections safe from dust and water splashes, making it suitable for semi-outdoor environments, production areas, and construction sites. Whether you are installing it in a warehouse, factory, or workshop, this socket provides dependable performance you can trust.
Key Features and Benefits
- 63A High-Current Capacity
Handles heavy-duty electrical loads safely and reliably, maintaining stable power delivery to critical equipment. - 5 Pin Configuration
Includes three phase pins (L1, L2, L3), a neutral pin, and an earth pin, supporting balanced three-phase power distribution and safe grounding. - Rugged Construction
Manufactured from premium thermoplastic to withstand daily wear, impacts, and harsh environments. - Splash-Proof Protection
IP44-rated housing resists dust ingress and water splashes, supporting safe operation in tough industrial settings. - Secure Connection Mechanism
Precision-engineered contacts ensure a tight, vibration-resistant fit with compatible 63A 5 Pin plugs, preventing accidental disconnections. - User-Friendly Design
Clear terminal markings and ergonomic construction simplify wiring, inspection, and maintenance.
Applications Across Industries
The Makewell Tech 63A 5 Pin Wall Socket is trusted by professionals across a range of industries, including:
- Manufacturing Plants: Powering conveyor systems, industrial ovens, and production lines.
- Construction Sites: Distributing safe, high-capacity power to mixers, pumps, and temporary installations.
- Warehouses: Operating forklifts, chargers, and automated handling systems.
- Workshops: Running welders, compressors, and heavy-duty tools.
- Agriculture: Connecting irrigation pumps, dryers, and processing machinery.

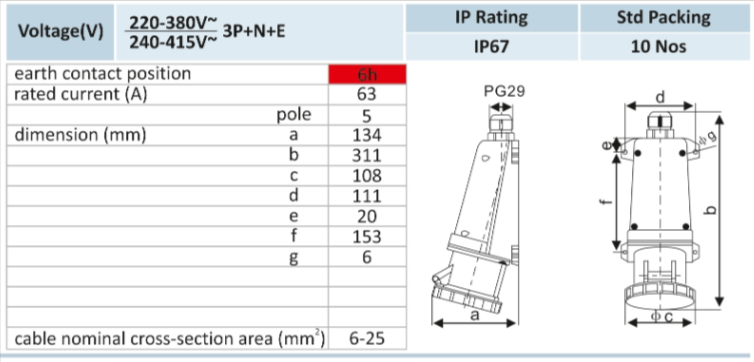

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 63A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
- Mounting: Wall installation with secure fixing points
Simple Installation
Installing the Makewell Tech 63A 5 Pin Wall Socket is straightforward:
- Prepare Wiring: Strip insulation to expose conductors.
- Connect Terminals: Insert conductors into the clearly marked terminals (L1, L2, L3, N, E) and tighten screws firmly.
- Mount the Socket: Fix securely to a stable wall or panel using suitable fasteners.
- Test Connections: Use a continuity tester to verify wiring before energizing.
- Important: Installation must be performed by a qualified electrician to comply with safety standards.
Why Choose Makewell Tech?
At Makewell Tech, we engineer products that combine durability, safety, and performance. The 63A 5 Pin Wall Socket reflects our commitment to providing professionals with rugged, dependable solutions that keep operations running smoothly and efficiently.
