Technical data-sheet
MW-2152 16A 5 PIN Connector
Makewell Tech’s 16A 5 Pin Connector delivers safe, reliable three-phase power connections for industrial and commercial use. Built rugged for dependable performance in demanding environments.
The Makewell Tech 16A 5 Pin Connector is engineered to provide dependable, safe, and efficient power connections in demanding industrial and commercial environments. Designed for seamless integration with three-phase electrical systems, this heavy-duty connector ensures your equipment receives consistent electricity to keep your operations running smoothly.
Built for Professional Use
With a 16A current rating, this connector is perfect for medium-duty three-phase machinery, tools, and systems requiring stable, uninterrupted power. Whether you are powering motors, conveyor systems, portable equipment, or worksite tools, this connector provides a secure electrical interface that prevents downtime and improves productivity.
Manufactured from industrial-grade thermoplastic, the housing offers exceptional durability and impact resistance. It is designed to withstand harsh conditions such as temperature fluctuations, vibration, and exposure to dust and moisture. This ensures long-lasting performance, even in challenging industrial and outdoor environments.
Key Features and Benefits
- 16A Current Capacity
Safely handles medium-duty electrical loads without overheating, ensuring stable operation for critical equipment. - 5 Pin Configuration
Includes three phase pins (L1, L2, L3), a neutral pin, and an earth pin, delivering balanced power distribution and full grounding protection compliant with IEC/EN 60309 standards. - Durable Construction
High-impact thermoplastic housing resists abrasion, impact, and chemicals for maximum lifespan. - Ingress Protection
IP44-rated design protects internal components from dust and splashing water, supporting safe use in semi-outdoor environments. - Secure Connection Mechanism
Precision-engineered contacts ensure a tight, vibration-resistant fit with matching plugs and sockets, reducing the risk of accidental disconnections. - User-Friendly Design
Clearly marked terminals and ergonomic grips make installation, wiring, and maintenance quick and simple.
Typical Applications
Makewell Tech’s 16A 5 Pin Connector is trusted across industries and settings such as:
- Manufacturing Facilities: Connecting production machinery, conveyor systems, and control panels.
- Workshops: Powering welding machines, compressors, and three-phase tools.
- Construction Sites: Delivering reliable power to lighting, mixers, and portable equipment.
- Warehouses: Running chargers, automated systems, and material handling devices.
- Agriculture: Operating irrigation pumps and processing machines.

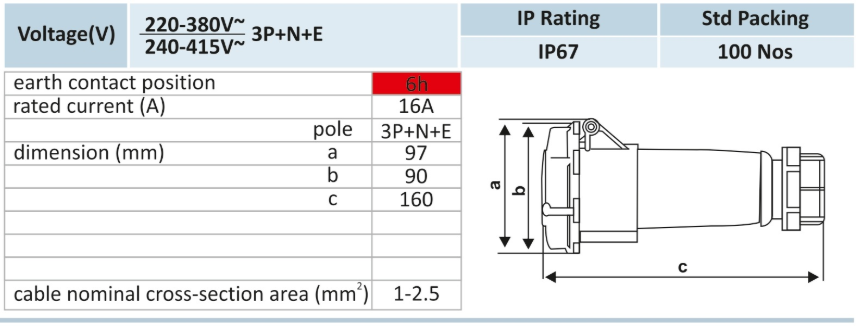

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 16A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
Easy Installation
Installing the Makewell Tech 16A 5 Pin Connector is straightforward:
- Prepare Cable: Strip insulation to expose conductors.
- Wire Terminals: Insert conductors into the clearly labeled terminals (L1, L2, L3, N, E) and tighten screws securely.
- Assemble Housing: Close the body and engage the locking mechanism to maintain protection.
- Test the Connection: Use a continuity tester to verify wiring before energizing.
- Important: Installation must be performed by a qualified electrician to comply with safety regulations.
Why Choose Makewell Tech?
Makewell Tech is committed to delivering robust, professional-grade power solutions. The 16A 5 Pin Connector combines safety, durability, and ease of use—helping you power your equipment with confidence, every day.
