MW-145 125A 5 PIN Wall Socket

The Makewell Tech 125A 5 Pin Wall Socket is built for the highest demands in modern industry. When your operations require reliable, continuous power for large equipment, this rugged socket delivers unmatched performance and safety. Whether installed in a factory, shipyard, or construction site, it ensures stable three-phase electricity distribution where it matters most.

Designed for High-Performance Power

With a 125-amp rating, this wall socket is engineered to power heavy machinery, high-capacity chargers, industrial motors, and energy-intensive equipment. The robust housing is crafted from industrial-grade thermoplastic to withstand impacts, vibration, and harsh environmental conditions. This ensures reliable performance and long service life even in the most demanding applications.

Thanks to its IP67 ingress protection, the socket offers total dust-tight sealing and protection against immersion in water up to 1 meter, making it ideal for indoor and outdoor installations exposed to moisture, dust, or splashes.

Key Features and Benefits

• 125A High-Current Capacity
  Safely delivers high-power connections without overheating, supporting demanding industrial systems and continuous operation.
• 5 Pin Configuration
  Includes three phase pins (L1, L2, L3), neutral, and earth pins for balanced three-phase power distribution and comprehensive grounding protection.
• Heavy-Duty Thermoplastic Housing
  Resistant to mechanical stress, chemicals, and UV exposure, ensuring durability and safety over time.
• IP67 Dust and Waterproof Design
  Prevents ingress of dust and withstands temporary water immersion, making it perfect for outdoor and harsh industrial environments.
• Secure Connection Mechanism
  Precision-engineered contacts ensure a tight, vibration-resistant fit with compatible 125A 5 Pin plugs, preventing accidental disconnections.
• User-Friendly Installation
  Clear terminal markings and ergonomic design reduce installation time and improve safety during setup and maintenance.

Applications Across Industries

The Makewell Tech 125A 5 Pin Wall Socket is trusted by professionals in diverse industries, including:

• Manufacturing Facilities: Powering large production lines, industrial ovens, and processing equipment.
• Construction Sites: Distributing reliable three-phase power to heavy machinery, cranes, and site installations.
• Shipyards: Running dockside equipment, welding systems, and marine machinery.
• Warehouses: Operating high-capacity chargers, conveyors, and automation systems.
• Agriculture: Connecting irrigation pumps, grain dryers, and large processing machinery.

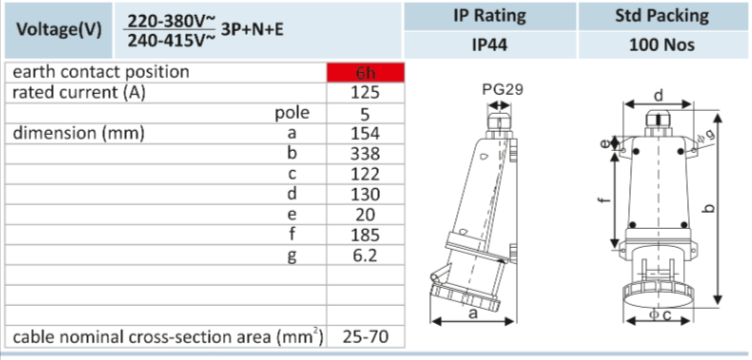

Technical Specifications

1. Brand: Makewell Tech
2. Current Rating: 125A
3. Voltage: 380–415V (three-phase)
4. Pins: 5 (3 phase + neutral + earth)
5. Material: High-impact thermoplastic
6. Ingress Protection: IP67 (dust-tight and waterproof)
7. Operating Temperature: -25°C to +40°C
8. Standards Compliance: IEC/EN 60309
9. Mounting: Wall installation with secure fixing points

Easy and Safe Installation

Installing the Makewell Tech 125A 5 Pin Wall Socket is straightforward:

• Prepare Wiring: Strip cable insulation to expose conductors.
• Wire Terminals: Insert conductors into the clearly marked terminals (L1, L2, L3, N, E) and tighten securely.
• Mount the Socket: Fix to a stable wall or panel using the appropriate fasteners.
• Test Connections: Always verify wiring with a continuity tester before energizing.
• Important: Installation must be carried out by a qualified electrician to ensure compliance with safety standards.

Why Choose Makewell Tech?

At Makewell Tech, we are committed to engineering products that deliver uncompromising performance, safety, and reliability. The 125A 5 Pin Wall Socket is the professional’s choice for heavy-duty three-phase power connections that keep your operations moving smoothly every day.
