Technical data-sheet

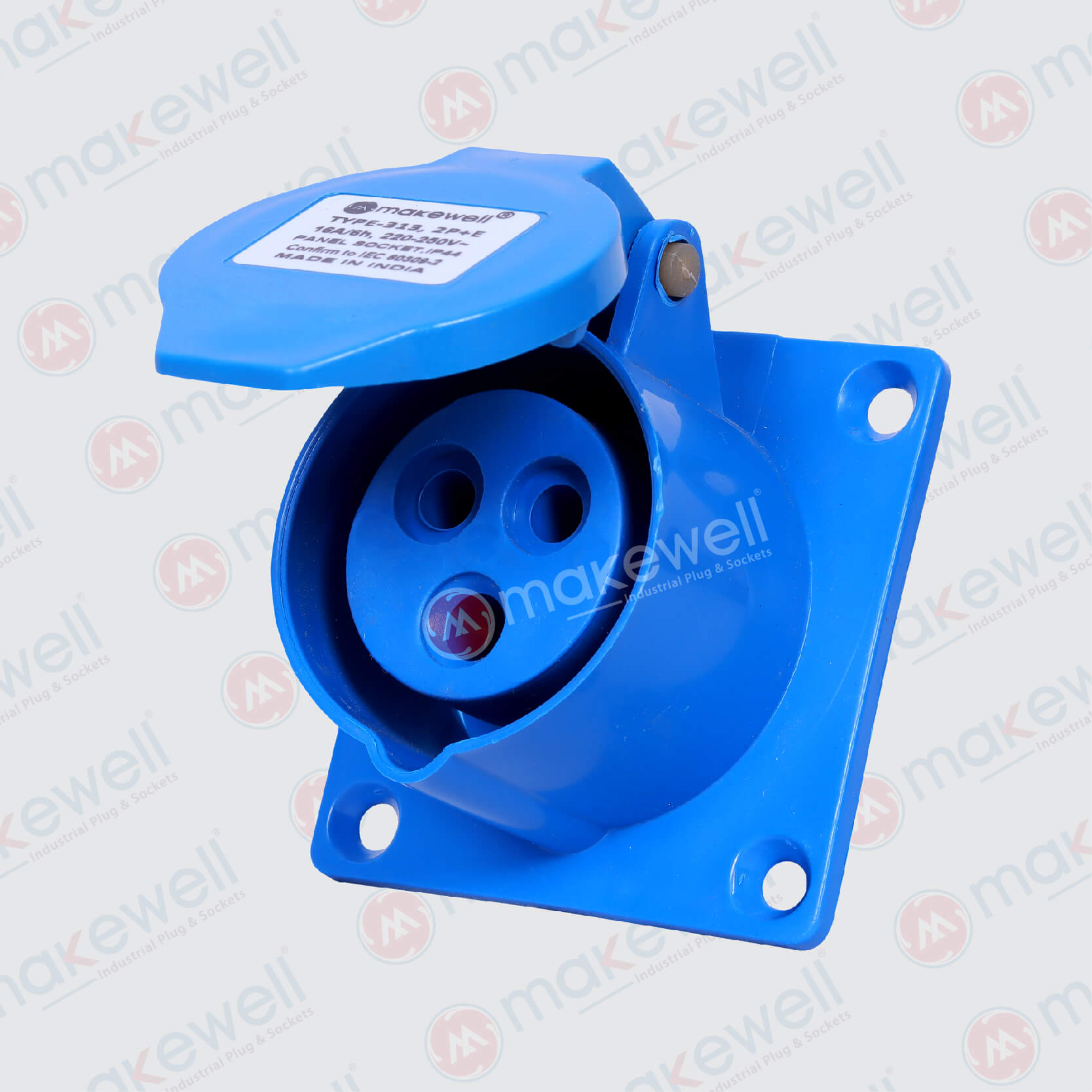

MW-323 32A 3 PIN Panel Socket
Makewell Tech’s 32A 3 Pin Panel Socket ensures secure, high-capacity power distribution in industrial panels and equipment. Built for reliable performance in demanding environments.
The Makewell Tech 32A 3 Pin Panel Socket is engineered to provide robust, secure, and efficient power connections for demanding industrial and commercial environments. Whether you’re building a power distribution panel or upgrading existing systems, this heavy-duty socket is designed to handle high-current loads with reliability and safety.
Built for Industrial Performance
With a 32A current rating, this panel socket is ideal for installations requiring consistent, high-capacity power distribution. From manufacturing plants and warehouses to construction sites and workshops, it delivers stable electricity to support machinery, tools, and equipment that demand continuous operation.
The panel-mounted design offers a clean, professional installation that integrates seamlessly into distribution boards, control cabinets, and enclosures.
Key Features and Benefits
- 32A Current Capacity
Designed to handle high-demand equipment and systems without performance loss, ensuring dependable power delivery. - 3 Pin Configuration
Includes live, neutral, and earth pins for safe grounding and compliance with IEC/EN standards. - Industrial-Grade Housing
Constructed from premium thermoplastic material for exceptional impact resistance, thermal stability, and protection against environmental stress. - Secure Connection Mechanism
Precision-engineered contacts provide a firm, vibration-resistant fit with compatible 32A 3 Pin plugs, reducing the risk of accidental disconnections. - Ingress Protection
Models available with IP44 or higher protection ratings safeguard against dust and splashing water, making this socket suitable for semi-outdoor use and challenging conditions. - Ergonomic and User-Friendly Design
Clearly marked terminals and an accessible layout simplify wiring and reduce installation time.
Applications Across Industries
Makewell Tech’s 32A 3 Pin Panel Socket is trusted in a wide range of applications, including:
- Manufacturing Plants: Delivering stable power to production lines, conveyor systems, and large machinery.
- Workshops: Supplying energy to welders, compressors, and high-capacity industrial tools.
- Warehouses: Powering automated material handling systems, chargers, and storage equipment.
- Construction Sites: Integrating into temporary or permanent power distribution panels for site equipment.
- Agriculture: Running irrigation pumps and processing systems safely and efficiently.
Technical Specifications
- Brand: Makewell Tech
- Current Rating: 32A
- Voltage: 220–250V
- Pins: 3 (Live, Neutral, Earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44 or higher
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
- Mounting: Panel installation with secure fixing points
Easy Installation
Installing the Makewell Tech 32A 3 Pin Panel Socket is simple:
- Prepare the Panel: Cut an opening to match the socket dimensions.
- Wire the Terminals: Strip insulation and insert conductors into the clearly labeled terminals.
- Secure Connections: Tighten all screws to prevent loosening under vibration.
- Mount the Socket: Fix into place with the provided fasteners.
- Verify Wiring: Always test with a continuity tester before energizing.
- Important: Installation should be performed by a qualified electrician to ensure compliance with local regulations.
Why Choose Makewell Tech?
At Makewell Tech, we build products that professionals can rely on. Our 32A 3 Pin Panel Socket offers the rugged construction, certified safety, and reliable performance you need to power your operations with confidence—day after day.
