MW-325 32A 5 PIN Panel Socket

The Makewell Tech 32A 5 Pin Panel Socket is designed to deliver consistent, high-capacity three-phase power in the toughest environments. Purpose-built for industrial panels, control enclosures, and distribution boards, this heavy-duty socket provides secure and efficient connections to keep machinery and systems running safely.

Engineered for Heavy-Duty Applications

With a 32A current rating, this panel socket easily powers large three-phase equipment such as industrial motors, production lines, and heavy-duty tools. The durable thermoplastic housing is resistant to impacts, heat, and vibration, ensuring reliable performance even in demanding conditions.

Thanks to its IP44-rated design, the socket offers effective protection against dust ingress and water splashes, supporting safe operation in workshops, warehouses, and construction sites.

Key Features and Benefits

• 32A High-Current Capacity
  Handles demanding electrical loads without overheating, delivering stable power for mission-critical equipment.
• 5 Pin Configuration
  Three phase pins (L1, L2, L3), neutral, and earth provide balanced three-phase connections with full grounding protection.
• Rugged Industrial Construction
  High-grade thermoplastic withstands daily use, mechanical stress, and exposure to challenging environments.
• Secure Connection Mechanism
  Precision-engineered contacts maintain a tight, vibration-resistant fit with compatible 32A 5 Pin plugs, minimizing the risk of accidental disconnections.
• IP44 Splash-Proof Protection
  Resists dust and water splashes, ensuring safety and durability in semi-outdoor and industrial settings.
• User-Friendly Design
  Clear terminal markings and an accessible layout make wiring and inspection simple and efficient.

Typical Applications

Makewell Tech’s 32A 5 Pin Panel Socket is widely used in:

• Manufacturing Facilities: Connecting production lines, conveyor systems, and processing equipment.
• Construction Sites: Integrating into temporary or permanent distribution panels for site power.
• Workshops: Powering industrial saws, welders, compressors, and high-capacity tools.
• Warehouses: Supporting automated handling equipment, chargers, and forklifts.
• Agriculture: Operating irrigation pumps, dryers, and processing systems safely.

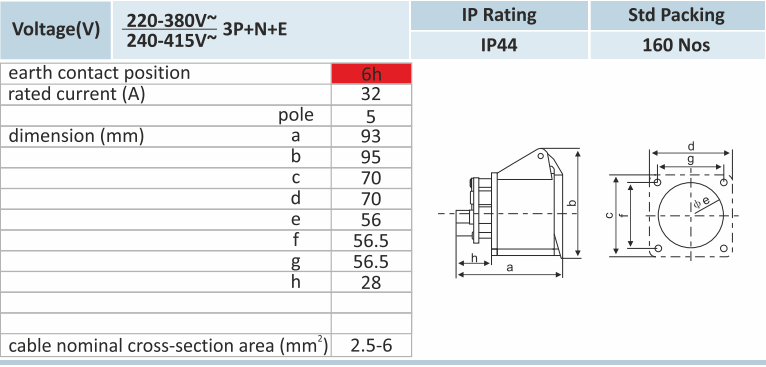

Technical Specifications

1. Brand: Makewell Tech
2. Current Rating: 32A
3. Voltage: 380–415V (three-phase)
4. Pins: 5 (3 phase + neutral + earth)
5. Material: High-impact thermoplastic
6. Ingress Protection: IP44 or higher
7. Operating Temperature: -25°C to +40°C
8. Standards Compliance: IEC/EN 60309
9. Mounting: Panel installation with secure fixing points

Simple Installation

Installing the Makewell Tech 32A 5 Pin Panel Socket is fast and straightforward:

• Prepare the Panel Cutout: Create an opening according to the installation template.
• Wire the Terminals: Strip cable insulation and insert conductors into marked terminals (L1, L2, L3, N, E).
• Secure the Terminals: Tighten screws firmly to ensure a safe connection.
• Mount the Socket: Fix into place with screws, ensuring the housing is stable and sealed.
• Test the Wiring: Use a continuity tester to confirm correct installation before energizing.
• Important: Installation must be performed by a qualified electrician to meet safety regulations.

Why Choose Makewell Tech?

At Makewell Tech, we design products for professionals who demand reliability, compliance, and performance. The 32A 5 Pin Panel Socket delivers the robust power connections you need to keep your operations running smoothly, day after day.
