Technical data-sheet

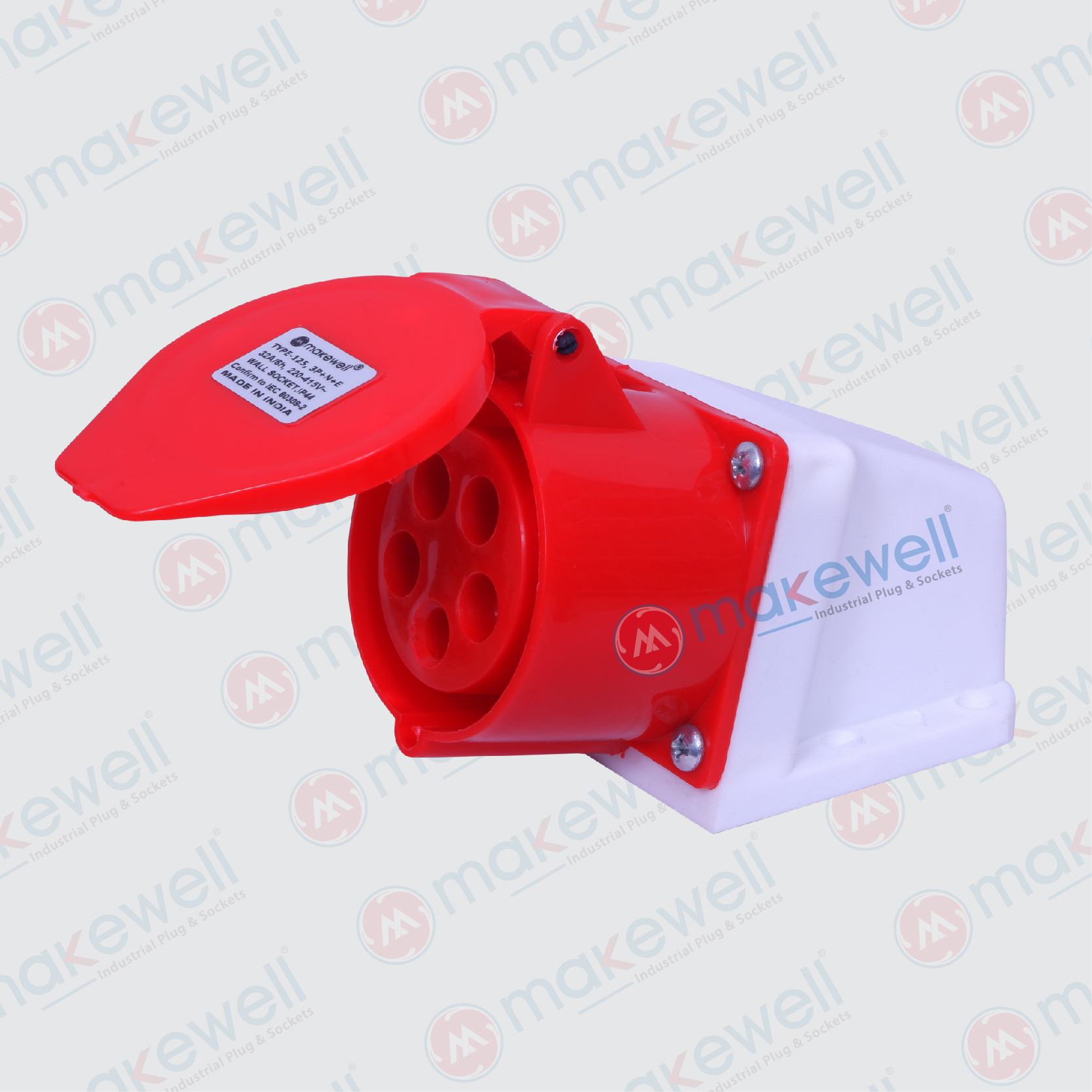

MW-115 16A 5 PIN Wall Socket
Makewell Tech’s 16A 5 Pin Wall Socket ensures safe, reliable three-phase power distribution in industrial and commercial environments. Built for durability and performance.
When your operations depend on consistent, safe, and high-quality power connections, the Makewell Tech 16A 5 Pin Wall Socket delivers the performance professionals trust. Engineered for three-phase electrical systems, this heavy-duty wall socket is designed to handle demanding loads in industrial, commercial, and construction environments.
Built for Industrial Excellence
Unlike standard outlets, this 16A 5 Pin Wall Socket is purpose-built for equipment that requires balanced, three-phase power distribution. The 16A rating makes it ideal for powering motors, machinery, and other high-consumption equipment where reliability and safety are critical.
Whether installed in a manufacturing facility, warehouse, workshop, or outdoor area, this socket provides stable, dependable connections to keep your equipment operating at peak performance.
Key Features and Benefits
- 16A Current Rating
Handles medium-duty electrical loads effortlessly, ensuring your machinery and tools run safely and efficiently. - 5 Pin Configuration
Includes three phase pins (L1, L2, L3), a neutral pin, and an earth pin to support balanced three-phase power and complete grounding. - Rugged Construction
Crafted from industrial-grade thermoplastic, this socket withstands impacts, vibrations, and temperature fluctuations. - Secure Connection Mechanism
Precision-engineered contacts deliver a firm, reliable connection with compatible 16A 5 Pin plugs, preventing accidental disconnections. - Ingress Protection
Available in models rated IP44 and higher, protecting against dust and water splashes in demanding environments. - User-Friendly Design
Clear terminal markings and an ergonomic housing make installation and maintenance straightforward, even in tight spaces.
Typical Applications
Makewell Tech’s 16A 5 Pin Wall Socket is used across diverse sectors, including:
- Manufacturing Plants: Powering production lines, conveyors, and three-phase motors.
- Construction Sites: Connecting heavy-duty tools, mixers, and temporary power distribution boards.
- Warehouses: Running automated material handling systems.
- Workshops: Safely supplying power to industrial ovens, compressors, and machinery.
- Agriculture: Supporting irrigation pumps and processing equipment in rugged environments.

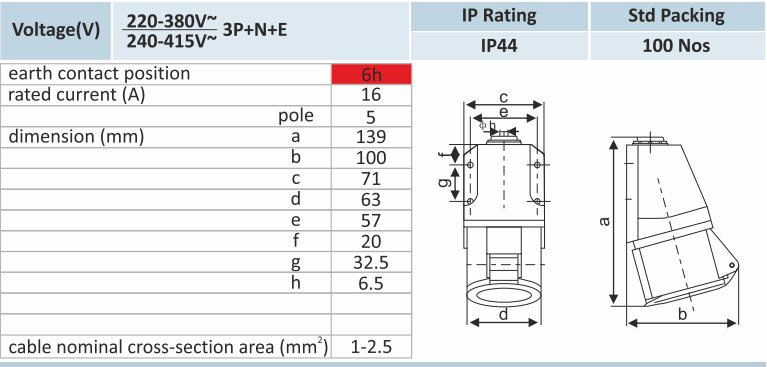

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 16A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase, neutral, earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44 or higher (depending on model)
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
Easy Installation
Installing the Makewell Tech 16A 5 Pin Wall Socket is fast and secure:
- Prepare Wiring: Strip insulation to expose conductors.
- Connect Terminals: Insert conductors into clearly marked terminals (L1, L2, L3, N, E).
- Tighten Screws: Secure terminals to prevent loosening under vibration.
- Mount Housing: Fix the socket securely to the wall surface or mounting box.
- Test: Always verify wiring with a continuity tester before energizing.
Note: Installation should be performed by a qualified electrician to ensure compliance with safety regulations.
Why Choose Makewell Tech?
At Makewell Tech, we combine rugged engineering with a commitment to safety and quality. Our 16A 5 Pin Wall Socket is designed for professionals who expect dependable performance every day. Backed by stringent testing and compliance with international standards, this socket provides the peace of mind you need for critical operations.
