Technical data-sheet
MW-335 63A 5 PIN Panel Socket
Makewell Tech’s 63A 5 Pin Panel Socket ensures safe, high-capacity three-phase power distribution in industrial panels and enclosures. Built for durability and reliable performance in demanding environments.
The Makewell Tech 63A 5 Pin Panel Socket is purpose-built to deliver reliable, high-capacity three-phase power connections for the most demanding environments. Whether you are installing it in a manufacturing facility, distribution board, or construction site panel, this rugged socket offers safe, stable power for critical operations and heavy-duty equipment.
Engineered for Maximum Performance
With a 63-amp current rating, this panel socket easily powers high-consumption machinery, production lines, and industrial tools that require continuous, dependable power. Its robust housing, made from industrial-grade thermoplastic, resists impacts, heat, vibration, and chemical exposure, making it a dependable solution for challenging installations.
The IP44 ingress protection guards against dust and water splashes, ensuring safe performance in semi-outdoor and demanding industrial environments.
Key Features and Benefits
- 63A High-Current Capacity
Supports heavy loads safely, delivering consistent power without overheating or failure. - 5 Pin Configuration
Three phase pins (L1, L2, L3), neutral, and earth pins provide balanced three-phase power distribution and reliable grounding. - Durable Thermoplastic Construction
Engineered for impact resistance and thermal stability, ensuring long service life in tough conditions. - Splash-Proof Design (IP44)
Protects against dust ingress and water splashes, keeping internal contacts safe and secure. - Secure Connection Mechanism
Precision-engineered contacts and locking features maintain a tight, vibration-resistant connection with compatible 63A 5 Pin plugs. - Ergonomic and User-Friendly
Clearly marked terminals and a straightforward panel-mount design simplify installation, wiring, and inspection.
Typical Applications
The Makewell Tech 63A 5 Pin Panel Socket is trusted by professionals across industries, including:
- Manufacturing Plants: Powering conveyor systems, industrial ovens, and production machinery.
- Construction Sites: Distributing safe, high-capacity power to site equipment, tools, and lighting.
- Warehouses: Running high-capacity chargers, forklifts, and material handling systems.
- Workshops: Connecting welders, compressors, and heavy-duty tools safely.
- Agriculture: Supplying energy to large pumps, dryers, and processing machinery.

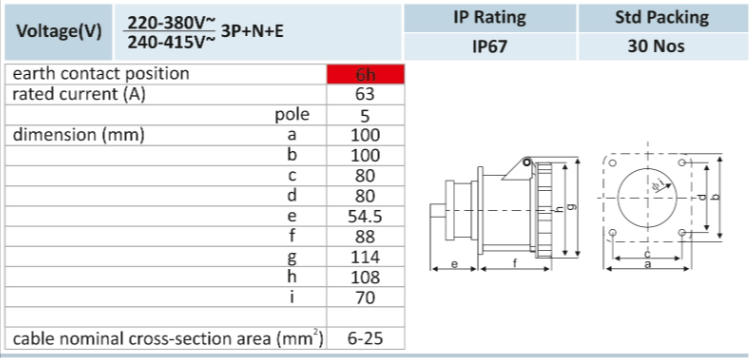

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 63A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
- Mounting: Panel installation with secure fixing points
Simple Installation
Installing the Makewell Tech 63A 5 Pin Panel Socket is fast and efficient:
- Prepare the Panel: Cut an opening to fit the socket.
- Wire the Terminals: Strip insulation and insert each conductor into clearly labeled terminals (L1, L2, L3, N, E).
- Secure Connections: Tighten terminal screws to maintain a firm connection.
- Mount the Socket: Fix securely to the panel using the appropriate fasteners.
- Test Before Use: Use a continuity tester to verify correct wiring before energizing.
- Important: Installation should always be performed by a qualified electrician to meet safety regulations.
