MW-313 16A 3 PIN Panel Socket

The Makewell Tech 16A 3 Pin Panel Socket is designed for professionals who need a dependable, secure, and easy-to-install power outlet in demanding industrial and commercial environments. Engineered to deliver consistent electrical performance, this panel-mounted socket ensures safe connections for equipment, tools, and machinery.

Built for Reliability

Unlike standard wall sockets, this heavy-duty panel socket mounts directly onto control panels, distribution boxes, and machinery enclosures. Its 16A current rating is ideal for powering medium-duty loads like workshop tools, industrial lighting, and production equipment. The robust design provides long-lasting durability in harsh settings where vibration, dust, and frequent usage are common.

Key Features and Benefits

- 16A Current Capacity
Handles higher power requirements without overheating or performance loss.

- 3 Pin Configuration
Includes live, neutral, and dedicated earth pins to ensure safe, grounded connections every time.

- Rugged Thermoplastic Housing
Made from high-quality, impact-resistant material for excellent mechanical strength and heat resistance.

- Panel Mount Design
Easily installs into panels or enclosures with a secure fixing system that ensures stability and a professional finish.

- Secure Connection
Precision-engineered contacts deliver a tight, reliable fit with matching 16A 3 Pin plugs, preventing accidental disconnection.

- Ingress Protection
Rated IP44 (or higher depending on model), providing resistance to dust and splashes in industrial settings.

Versatile Applications

The Makewell Tech 16A 3 Pin Panel Socket is widely used across industries, including:

• Manufacturing Plants: For machinery, control panels, and assembly stations.
• Workshops: Connecting heavy-duty power tools and equipment safely.
• Construction Sites: Supplying reliable temporary power to distribution boards.
• Warehouses: Powering conveyors, lighting systems, and maintenance tools.
• Commercial Facilities: Installing secure outlets in service panels and workstations.

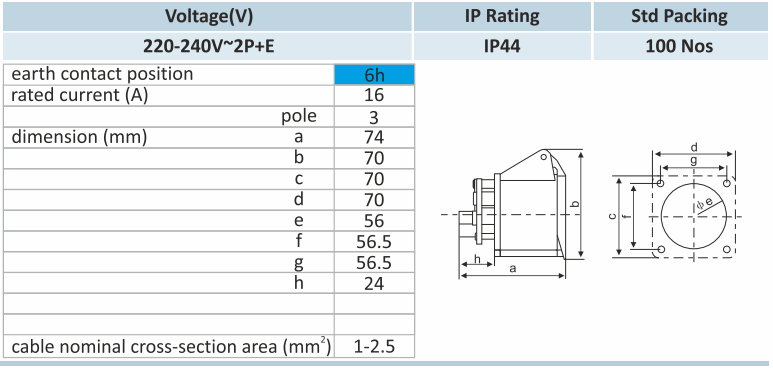

Technical Specifications

- Current Rating: 16A

- Voltage: 220–250V (confirm with local regulations)

- Pins: 3 (Live, Neutral, Earth)

- Material: Industrial-grade thermoplastic

- Ingress Protection: IP44 or higher

- Operating Temperature: -25°C to +40°C

- Mounting: Panel installation with screw fixing

- Standards Compliance: IEC/EN 60309

Easy Installation

Mounting the Makewell Tech 16A 3 Pin Panel Socket is simple:

- Cut the Panel Opening
Prepare a correctly sized cutout per the installation template.

- Position the Socket
Insert the socket into the panel cutout.

- Secure with Screws
Fasten screws to hold the socket firmly in place.

- Wire Connections
Connect conductors to clearly marked terminals—live, neutral, and earth.

- Verify Wiring
Always test connections with a continuity tester before energizing.

Choose Makewell Tech for Lasting Performance

With the Makewell Tech 16A 3 Pin Panel Socket, you get unmatched reliability and safety for your industrial power distribution. Designed for professionals who demand consistent performance, this socket delivers the peace of mind you need on every project.
