MW-245 125A 5 PIN Connector
Makewell Tech’s 125A 5 Pin Connector delivers robust, high-capacity three-phase power connections for heavy-duty industrial applications. Built for safety, durability, and reliability.
The Makewell Tech 125A 5 Pin Connector is engineered to deliver consistent, safe, and reliable three-phase power in the most challenging conditions. With a rugged design and high-current capacity, this heavy-duty connector provides secure electrical connections that keep your essential equipment powered and operational without interruption.
Designed for High-Performance Applications
Rated for 125 amps, this connector is purpose-built for industrial installations requiring large power loads. Whether you’re running heavy-duty motors, industrial ovens, or large machinery, the Makewell Tech 125A 5 Pin Connector offers dependable performance every day.
Constructed from industrial-grade thermoplastic, the housing resists impact, vibration, and chemical exposure. This durability makes it ideal for manufacturing plants, construction sites, shipyards, and any environment where reliable connections are critical to productivity.
Key Features and Benefits
- 125A High-Current Capacity
Handles demanding three-phase loads without overheating or performance loss, ensuring equipment runs safely and efficiently. - 5 Pin Configuration
Includes three phase pins (L1, L2, L3), a neutral pin, and an earth pin for balanced power distribution and comprehensive grounding protection. - Heavy-Duty Construction
Robust thermoplastic housing resists impact, abrasion, UV exposure, and extreme temperatures, extending the life of the connector. - IP67 Ingress Protection
Fully dust-tight and waterproof, ideal for indoor and outdoor use, including environments with frequent washdowns, dust, or moisture. - Secure Connection Mechanism
Precision-engineered contacts create a tight, vibration-resistant fit with compatible plugs and sockets, reducing the risk of accidental disconnections. - User-Friendly Design
Clear terminal markings and ergonomic grips make installation simple, reduce wiring errors, and speed up maintenance.
Typical Applications
The Makewell Tech 125A 5 Pin Connector is trusted in the most demanding industrial applications, including:
- Manufacturing Facilities: Connecting production lines, large industrial ovens, and processing equipment.
- Construction Sites: Delivering high-capacity power to cranes, compressors, and site power distribution boards.
- Shipyards: Supplying dockside equipment and heavy-duty marine machinery.
- Warehouses: Powering high-capacity chargers, forklifts, and automated handling systems.
- Agriculture: Operating large irrigation pumps, dryers, and grain processing equipment.

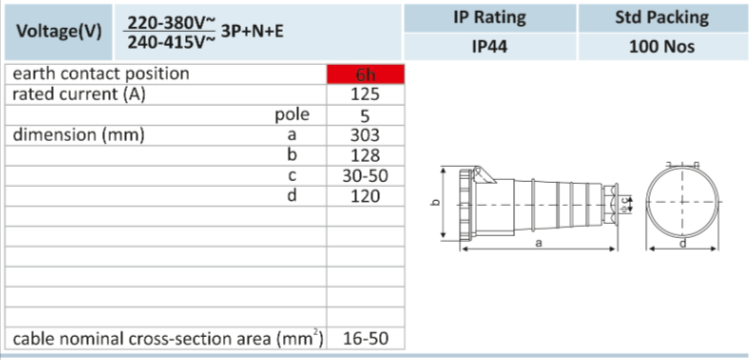

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 125A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP67 (dust-tight and waterproof)
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
Simple Installation
Installing the Makewell Tech 125A 5 Pin Connector is quick and straightforward:
- Prepare the Cable: Strip insulation to expose conductors.
- Wire Terminals: Insert conductors into the clearly marked terminals (L1, L2, L3, N, E) and tighten screws securely.
- Assemble the Housing: Close and lock the body to maintain the IP67 seal.
- Test Connections: Use a continuity tester to verify correct wiring before energizing.
- Important: Always have installation performed by a qualified electrician to ensure compliance with safety regulations.
Why Choose Makewell Tech?
Makewell Tech is dedicated to delivering industrial-grade electrical solutions that professionals trust. The 125A 5 Pin Connector combines exceptional durability, certified safety, and ease of use—helping you power your operations reliably every day.
