MW-045 125A 5 PIN Plug

The Makewell Tech 125A 5 Pin Plug is purpose-built to deliver reliable, high-capacity three-phase power connections in the most demanding industrial and commercial environments. When your operations depend on safe, uninterrupted electricity, this rugged connector offers unmatched performance, ensuring your equipment runs efficiently and safely.

Designed for Maximum Performance

With an impressive 125-amp current rating, this plug is engineered for continuous power delivery to heavy machinery, large motors, industrial ovens, and high-capacity equipment. It is ideal for manufacturing facilities, shipyards, power generation sites, and other environments requiring consistent high-current supply.

The robust thermoplastic housing withstands extreme conditions, including impacts, vibration, and exposure to dust and moisture. Combined with a secure locking system, this plug prevents accidental disconnections and ensures stable operation in challenging settings.

Key Features and Benefits

• 125A High-Current Capacity
  Handles large-scale power demands without overheating or compromising performance, keeping critical systems operational.
• 5 Pin Configuration
  Three phase pins (L1, L2, L3), neutral, and earth pins provide balanced power distribution and comprehensive grounding protection in line with IEC/EN 60309 standards.
• Heavy-Duty Construction
  Manufactured from high-impact thermoplastic, the housing resists mechanical stress, temperature fluctuations, and harsh environments.
• Ingress Protection
  Available in IP67 variants for total dust-tight sealing and protection against powerful water jets or temporary immersion, making it ideal for demanding outdoor use.
• Secure Locking Mechanism
  Precision-engineered contacts and a reliable locking design create a tight, vibration-resistant fit with compatible industrial sockets.
• User-Friendly Design
  Ergonomic grips and clearly marked terminals simplify installation, reduce setup time, and ensure safe wiring.

Applications Across Industries

Makewell Tech’s 125A 5 Pin Plug is trusted in a wide range of critical applications, including:

• Manufacturing Plants: Supplying power to large machines, production lines, and industrial ovens.
• Shipyards: Delivering electricity to dockside equipment and heavy-duty motors.
• Construction Sites: Powering cranes, compressors, and temporary power distribution panels.
• Warehouses: Running high-capacity chargers, conveyors, and automated systems.
• Power Generation Facilities: Connecting backup generators and energy storage systems.
• Mining and Agriculture: Operating heavy processing equipment, irrigation systems, and drying machinery.

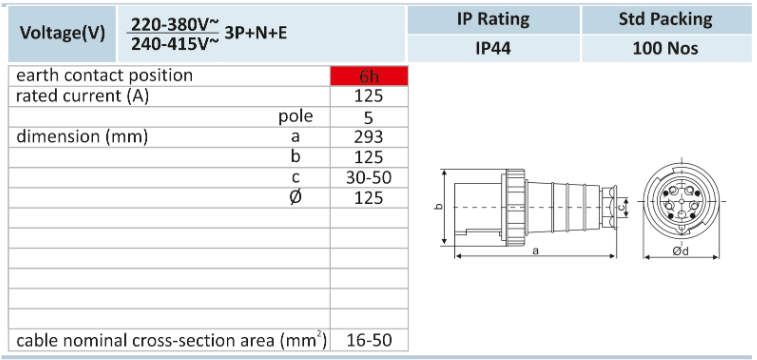

Technical Specifications

1. Brand: Makewell Tech
2. Current Rating: 125A
3. Voltage: 380–415V (three-phase)
4. Pins: 5 (3 phase + neutral + earth)
5. Material: High-impact thermoplastic
6. Ingress Protection: IP67 (dust-tight and waterproof)
7. Operating Temperature: -25°C to +40°C
8. Standards Compliance: IEC/EN 60309

Simple Installation

Installing the Makewell Tech 125A 5 Pin Plug is fast and secure:

• Prepare the Cable: Strip insulation to expose conductors.
• Connect Terminals: Insert each conductor into the clearly labeled terminals (L1, L2, L3, N, E) and tighten securely.
• Assemble the Housing: Close and engage the locking mechanism to maintain ingress protection.
• Test the Connection: Verify with a continuity tester before energizing.
• Important: Installation should always be performed by a qualified electrician to comply with safety regulations.

Why Choose Makewell Tech?

At Makewell Tech, we engineer products to meet the highest standards of safety, durability, and performance. The 125A 5 Pin Plug provides a dependable, heavy-duty power solution for critical three-phase applications, ensuring your operations run smoothly and safely every day.
