Technical data-sheet

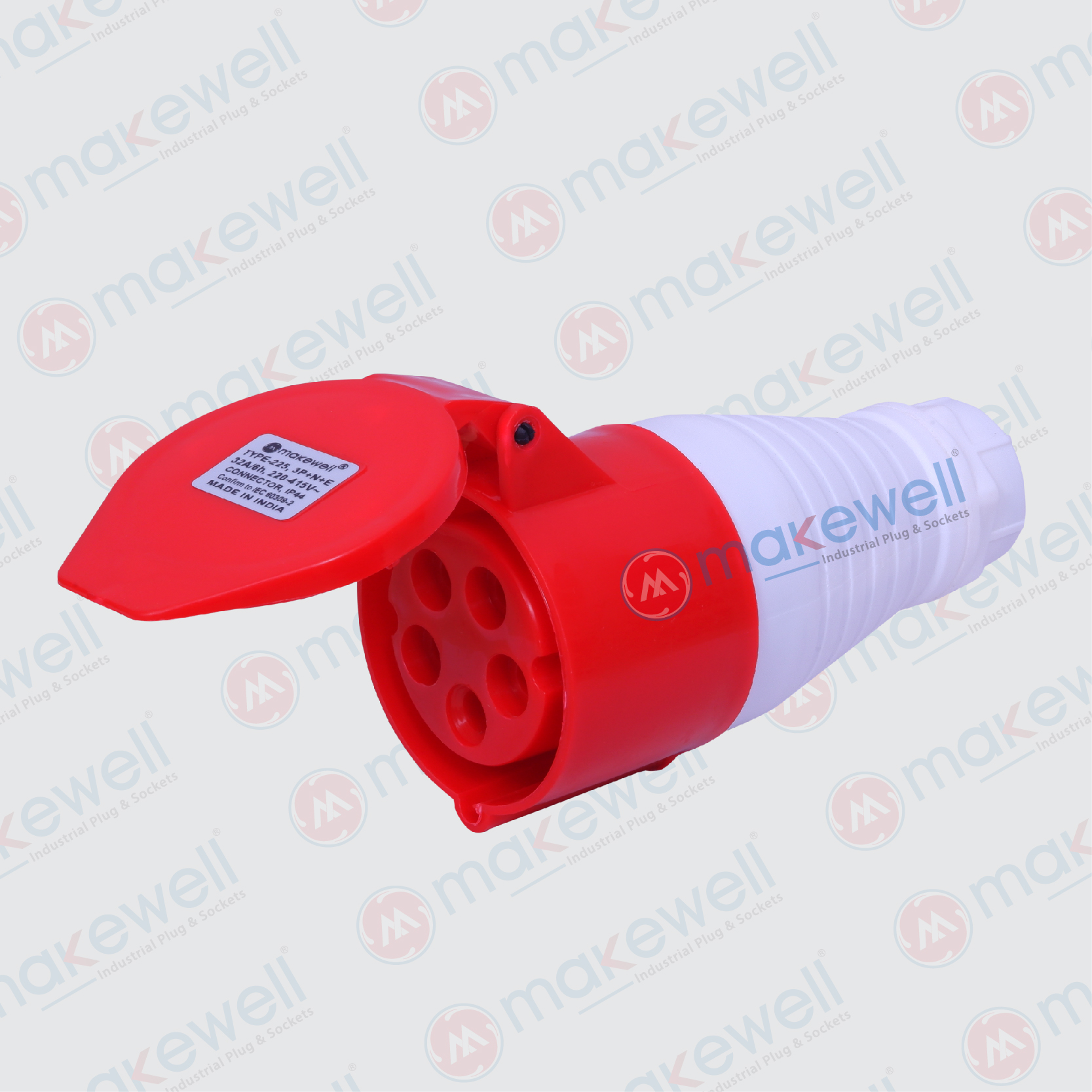

MW-215 16A 5 PIN Connector
Makewell Tech’s 16A 5 Pin Connector provides secure, reliable three-phase power connections for industrial and commercial applications. Built tough for safety and performance.
When your operations rely on safe, consistent power delivery, the Makewell Tech 16A 5 Pin Connector is the professional’s choice. Engineered to handle demanding industrial environments, this rugged connector provides reliable three-phase power distribution, helping you keep your equipment running smoothly and efficiently.
Built for Industrial Strength
Unlike standard connectors, this heavy-duty 5 Pin Connector is purpose-built for three-phase power systems requiring balanced, high-capacity electrical connections. The 16A current rating makes it ideal for medium-duty machinery, motors, and installations that must operate safely under continuous load.
Whether you work in manufacturing, construction, agriculture, or warehousing, this connector ensures stable, vibration-resistant connections that protect your people and your equipment.
Key Features and Benefits
- 16A Current Rating
Handles up to 16 amps safely, supporting a wide range of industrial equipment, tools, and three-phase systems. - 5 Pin Configuration
Includes three phase pins (L1, L2, L3), one neutral, and one earth pin, ensuring balanced electrical distribution and complete grounding for safety. - Robust Construction
Made from industrial-grade thermoplastic, this connector is resistant to impact, abrasion, and temperature fluctuations, delivering long-term durability. - Secure Connection Mechanism
Precision-engineered contacts create a tight, reliable fit with compatible plugs and sockets, preventing accidental disconnection during operation. - Ingress Protection
Available in IP44 and higher-rated models to guard against dust and splashing water, making it suitable for harsh environments. - User-Friendly Design
Features clear terminal markings and an ergonomic grip to simplify installation, inspection, and maintenance.
Typical Applications
The Makewell Tech 16A 5 Pin Connector is trusted across many sectors:
- Manufacturing: Connecting production machinery, conveyor systems, and control panels.
- Construction: Powering site equipment, mixers, and lighting systems.
- Warehousing: Supplying energy to automated material handling and storage systems.
- Agriculture: Running irrigation pumps and processing equipment.
- Events and Outdoor Installations: Delivering safe, reliable connections for three-phase lighting and temporary power.

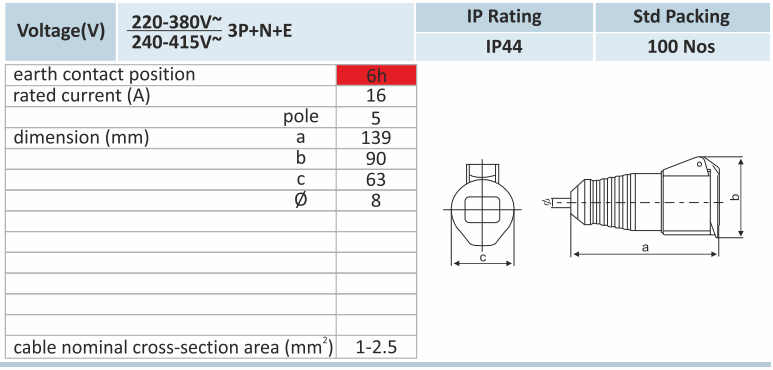

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 16A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44 or higher
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
Installation Made Simple
Installing the Makewell Tech 16A 5 Pin Connector is quick and straightforward:
- Prepare the Cable: Strip the insulation to expose conductors.
- Connect Wires: Insert conductors into the clearly marked terminals.
- Tighten Screws: Secure each connection to prevent loosening under vibration.
- Assemble the Housing: Close and secure the connector body, maintaining ingress protection.
- Test the Connection: Use a continuity tester to verify correct wiring before use.
- Important: Installation must be performed by a qualified electrician to meet safety regulations.
