MW-345 125A 5 PIN Panel Socket
Makewell Tech’s 125A 5 Pin Panel Socket delivers safe, high-capacity three-phase power connections for industrial panels and equipment. Designed for durability and maximum performance.
The Makewell Tech 125A 5 Pin Panel Socket is built to deliver safe, consistent, and heavy-duty power distribution where it matters most. Engineered for professional environments, this high-capacity socket provides secure connections for three-phase systems, ensuring your equipment operates efficiently and reliably under load.
Engineered for High-Performance Power
With a 125-amp current rating, this panel socket is purpose-built to handle large-scale industrial machinery, heavy-duty motors, and high-wattage equipment. It is the ideal choice for factories, construction sites, shipyards, and other demanding installations where continuous operation is non-negotiable.
The robust housing is manufactured from high-impact thermoplastic, offering outstanding resistance to mechanical stress, chemical exposure, and extreme temperatures. The secure contact design ensures reliable conductivity, while the panel mounting delivers a clean, professional installation.
Key Features and Benefits
- 125A Current Capacity
Supports high-demand three-phase equipment without overheating, ensuring steady power delivery for critical operations. - 5 Pin Configuration
Includes three phase pins (L1, L2, L3), neutral, and earth pins for balanced, safe power distribution in compliance with IEC/EN standards. - Rugged Construction
Durable thermoplastic housing withstands impacts, vibrations, and harsh working conditions. - IP67 Protection
Dust-tight and waterproof, ensuring the socket remains reliable even in wet or dusty environments. - Secure Connection Mechanism
Precision-engineered contacts create a tight, vibration-resistant fit with compatible 125A 5 Pin plugs, reducing accidental disconnections. - Easy Installation
Clearly marked terminals and an ergonomic design simplify wiring, inspection, and maintenance.
Applications Across Industries
The Makewell Tech 125A 5 Pin Panel Socket is trusted in a wide variety of industrial settings, including:
- Manufacturing Plants: Supplying three-phase power to production lines, conveyor systems, and processing equipment.
- Shipyards: Distributing power to marine equipment, dockside tools, and heavy machinery.
- Construction Sites: Powering cranes, compressors, and high-capacity tools.
- Warehouses: Connecting forklifts, automated storage systems, and high-demand chargers.
- Agriculture: Running large irrigation pumps, dryers, and processing machinery.

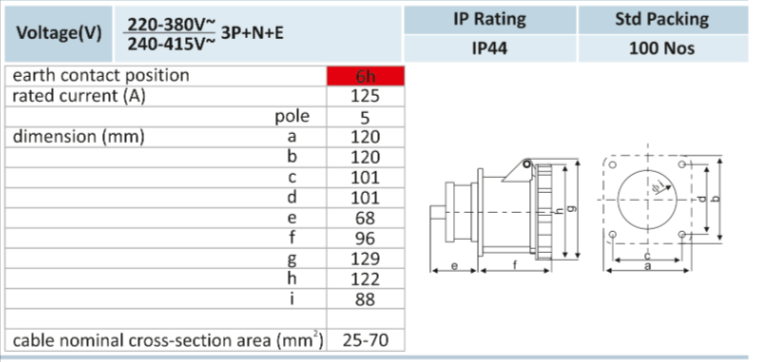

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 125A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP67 (dust-tight and waterproof)
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
- Mounting: Panel installation with secure fixing points
Easy and Safe Installation
Installing the Makewell Tech 125A 5 Pin Panel Socket is straightforward:
- Prepare the Panel: Cut the appropriate opening to fit the socket securely.
- Wire Terminals: Strip insulation, insert conductors into the labeled terminals (L1, L2, L3, N, E), and tighten screws firmly.
- Mount the Socket: Fasten it to the panel using the recommended hardware.
- Test Connections: Use a continuity tester to verify proper wiring before energizing.
- Important: Installation should always be performed by a qualified electrician to ensure compliance with safety regulations.
Why Choose Makewell Tech?
Makewell Tech is committed to delivering industrial-grade electrical solutions designed for reliability and safety. The 125A 5 Pin Panel Socket combines rugged engineering, certified performance, and user-friendly features to help keep your critical operations running smoothly—day after day.
