Technical data-sheet

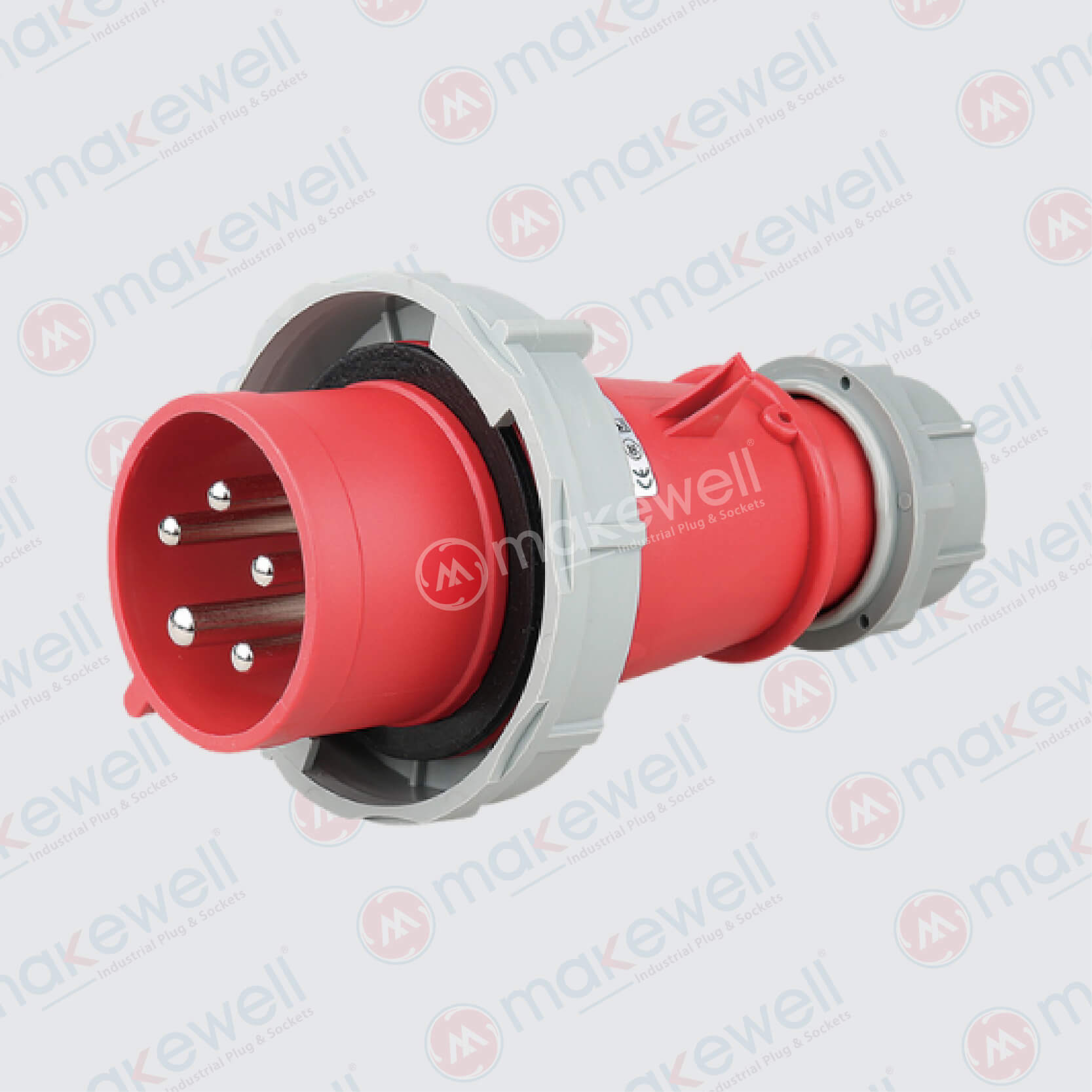

MW-0152 16A 5 PIN Plug
Makewell Tech’s 16A 5 Pin Plug delivers safe, reliable three-phase power connections for industrial and commercial equipment. Built rugged for dependable performance.
The Makewell Tech 16A 5 Pin Plug is designed for professionals who need consistent, safe, and efficient power distribution in industrial and commercial environments. Built to handle the demands of everyday use, this heavy-duty plug ensures uninterrupted three-phase electricity to keep your equipment operating at peak performance.
Engineered for High-Performance Power
With a 16A current rating, this plug is ideal for connecting medium-duty three-phase systems, including machinery, motors, production lines, and portable tools. Its robust construction and secure connection mechanism provide peace of mind by minimizing the risk of accidental disconnections and ensuring stable electrical contact.
The housing is crafted from high-quality thermoplastic, providing excellent resistance to impact, vibration, and exposure to chemicals and dust. Whether you’re working indoors or on a construction site, this plug stands up to tough conditions without compromising safety or performance.
Key Features and Benefits
- 16A Current Capacity
Delivers steady, efficient power for medium-duty equipment without overheating, supporting reliable operation over long hours. - 5 Pin Configuration
Includes three phase pins (L1, L2, L3), a neutral pin, and an earth pin, ensuring balanced power distribution and proper grounding to meet IEC/EN 60309 standards. - Durable Thermoplastic Housing
Withstands mechanical stress, harsh temperatures, and daily wear to maximize service life. - Ingress Protection
Rated IP44 or higher to protect against dust and water splashes, supporting safe use in semi-outdoor environments. - Secure Locking System
Precision-engineered contacts create a tight, vibration-resistant fit with compatible sockets, reducing the risk of accidental disconnection. - Ergonomic Design
Ribbed grips and clearly labeled terminals make installation, handling, and maintenance quick and straightforward.
Typical Applications
Makewell Tech’s 16A 5 Pin Plug is trusted in many industries, including:
- Manufacturing Facilities: Connecting machinery, conveyors, and workstations requiring three-phase power.
- Workshops: Powering industrial tools, portable compressors, and welding equipment.
- Construction Sites: Distributing power to lighting systems, heavy-duty tools, and temporary installations.
- Warehouses: Operating automated equipment, forklifts, and chargers.
- Agriculture: Supplying power to irrigation pumps and processing equipment.

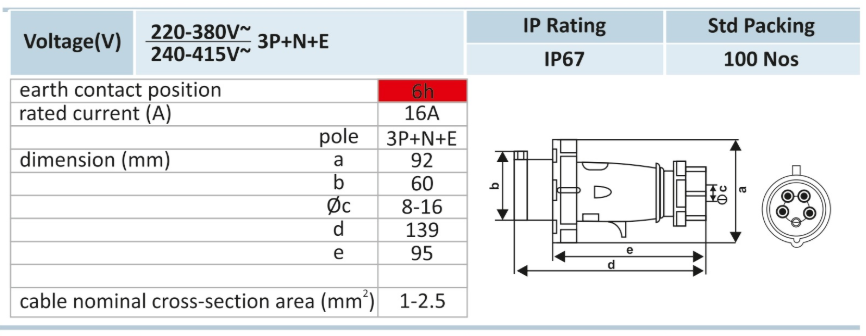

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 16A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
Easy Installation
Installing the Makewell Tech 16A 5 Pin Plug is fast and reliable:
- Prepare the Cable: Strip insulation to expose conductors.
- Wire Terminals: Insert conductors into the clearly marked terminals and tighten screws securely.
- Assemble Housing: Close the housing and engage the locking mechanism to maintain protection.
- Test Connections: Use a continuity tester to verify wiring before energizing.
- Important: Installation should always be performed by a qualified electrician to ensure compliance with safety regulations.
Why Choose Makewell Tech?
Makewell Tech is committed to delivering high-quality electrical solutions that professionals trust. The 16A 5 Pin Plug combines robust construction, user-friendly design, and certified safety, helping you keep your operations running smoothly every day.
