Technical data-sheet
MW-3132 16A 3 PIN Panel Socket
Makewell Tech’s 16A 3 Pin Panel Socket ensures safe, efficient power distribution in industrial panels and enclosures. Built for reliability, ease of installation, and long-lasting performance.
The Makewell Tech 16A 3 Pin Panel Socket is engineered to deliver safe, reliable power connections in a wide range of demanding environments. Whether you’re integrating it into industrial panels, control boxes, or machinery enclosures, this socket ensures consistent electrical performance and uncompromising safety.
Engineered for Reliable Power Distribution
With a 16A current rating, this panel socket is ideal for supplying power to medium-duty equipment, machinery, and workstations that require stable, continuous power. Its robust thermoplastic housing is built to withstand impacts, vibration, and challenging industrial conditions, ensuring lasting durability even in harsh environments.
The socket’s compact, panel-mounted design allows for clean, professional installation in control cabinets, switchboards, and distribution boxes. This helps reduce clutter, streamline connections, and improve safety in busy work areas.
Key Features and Benefits
- 16A Current Capacity
Handles medium-duty loads with ease, ensuring reliable power delivery without overheating. - 3 Pin Configuration
Includes live, neutral, and earth pins, supporting proper grounding and compliance with IEC/EN 60309 standards. - Rugged Construction
Manufactured from high-impact thermoplastic for excellent resistance to mechanical stress, heat, and abrasion. - Ingress Protection
IP44-rated design shields internal connections from dust and splashing water, supporting safe use in industrial and commercial settings. - Secure Contact System
Precision-engineered terminals maintain a tight, vibration-resistant connection with compatible 16A 3 Pin plugs. - User-Friendly Design
Clear terminal markings and ergonomic layout make wiring simple, reducing installation time and minimizing the risk of errors.
Typical Applications
Makewell Tech’s 16A 3 Pin Panel Socket is trusted in a range of industries, including:
- Manufacturing Plants: Providing power to control panels, production lines, and equipment stations.
- Workshops: Connecting machinery, power tools, and lighting systems.
- Warehouses: Running chargers, handling systems, and maintenance equipment.
- Construction Sites: Supplying reliable power to site equipment and temporary distribution boxes.
- Commercial Facilities: Supporting maintenance and service equipment safely.

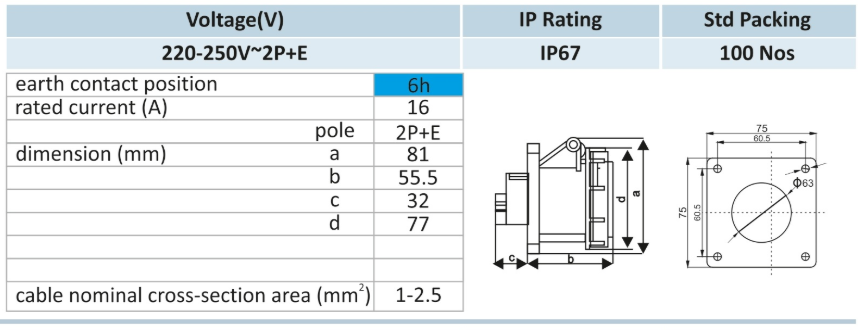

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 16A
- Voltage: 220–250V
- Pins: 3 (Live, Neutral, Earth)
- Material: High-impact thermoplastic
- Ingress Protection: IP44
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
- Mounting: Panel installation with secure fixing points
Easy Installation
Installing the Makewell Tech 16A 3 Pin Panel Socket is fast and secure:
- Prepare the Panel: Cut an opening to the recommended dimensions.
- Wire Terminals: Strip insulation and insert conductors into the labeled terminals (L, N, E).
- Secure Terminals: Tighten screws to create a reliable connection.
- Mount the Socket: Fix into place using screws or fasteners.
- Test Connections: Always check wiring with a continuity tester before energizing.
- Important: Installation must be performed by a qualified electrician to ensure safety and compliance.
Why Choose Makewell Tech?
At Makewell Tech, we combine engineering excellence with a commitment to safety, reliability, and ease of use. The 16A 3 Pin Panel Socket is designed to help you build robust electrical systems that perform consistently and safely—day after day.
