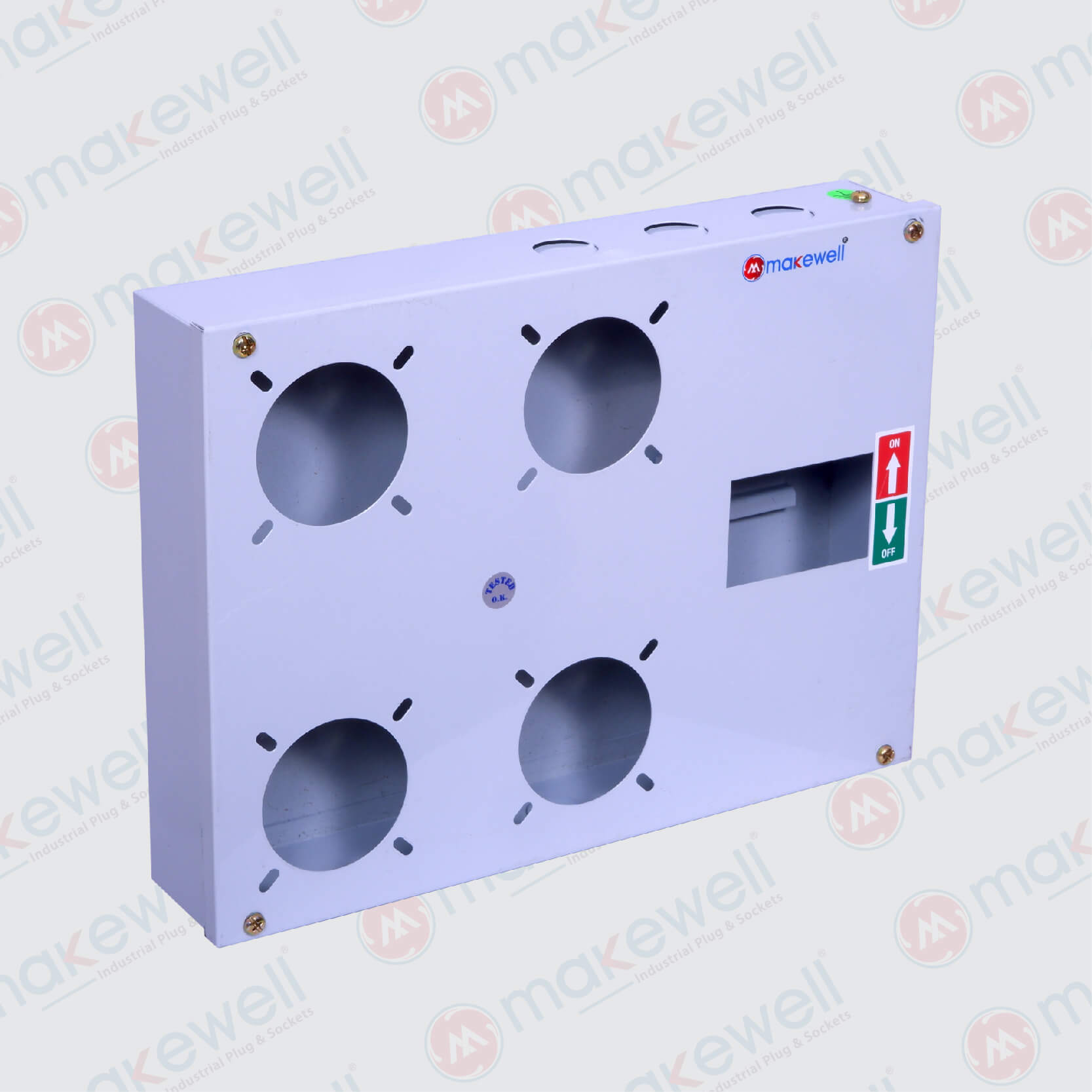

4+1 Metal Socket Box
Heavy-duty 4+1 metal socket box designed to support four primary industrial sockets and one auxiliary component for reliable and efficient multi-point power distribution in industrial environments.
High-Capacity Industrial Enclosure for Safe and Centralized Power Management
The Makewell Tech 4+1 Metal Socket Box is a high-strength industrial enclosure built to manage complex power distribution needs across heavy-duty environments. With space for four industrial-grade sockets and one auxiliary slot for additional functionality, this enclosure simplifies large-scale electrical setups by consolidating multiple power connections into one secure and organized system.
Constructed from premium-grade mild or galvanized steel and finished with a corrosion-resistant powder coating, this socket box is designed to withstand challenging industrial conditions such as heat, humidity, mechanical impact, dust, and vibration. It is the ideal solution for powering multiple machines, tools, or systems from a single unit, improving safety, efficiency, and maintenance accessibility.
The auxiliary slot (1) can be used for a control switch, pilot lamp, MCB, or additional socket, giving you the flexibility to expand functionality without installing a separate unit. This configuration is especially useful in production lines, mobile power stations, panel boards, and service stations.
Key Features and Benefits
4+1 Socket Configuration
Accommodates four heavy-duty sockets and one auxiliary slot, supporting high-load power requirements with centralized control.
Heavy-Duty Metal Construction
Built from industrial-grade mild or galvanized steel with protective powder coating for enhanced durability, impact resistance, and corrosion protection.
Flexible Socket Compatibility
Supports 16A to 63A sockets, both 3-pin and 5-pin configurations, in various voltage ranges.
Auxiliary Slot Integration
Enables installation of a switch, MCB, indicator light, or low-power socket based on operational needs.
Spacious Internal Layout
Ensures safe separation of wiring, supports cooling, and allows easy future maintenance or upgrades.
Optional IP Rating
Available in IP44/IP55/IP65 variants for protection against dust, water ingress, and outdoor exposure.
Multiple Mounting Options
Can be wall-mounted, pole-mounted, or fixed to a machine or board using pre-drilled mounting holes.
Typical Applications
- Manufacturing Plants – Powering multiple machines or stations in a single location
- Construction Sites – Outdoor and temporary power distribution for tools and equipment
- Warehousing & Logistics – Connecting conveyors, scanners, and handling systems
- Electrical Control Panels – Integrating multiple power sockets and auxiliary control in one panel
- Field Service Units – Mobile distribution boxes for field repairs and testing
Technical Specifications
- Brand: Makewell Tech
- Product Type: 4+1 Socket Enclosure
- Socket Capacity: 4 main industrial sockets + 1 auxiliary slot
- Material: Mild steel or galvanized steel
- Finish: Anti-rust powder coating
- Mounting Options: Wall, pole, panel mount
- Ingress Protection (Optional): IP44 / IP55 / IP65
- Supported Sockets: 16A / 32A / 63A sockets (3-pin or 5-pin)
- Operating Temperature Range: -25°C to +60°C
- Compliance: Conforms to IEC/EN 60309 and Indian IS standards
Installation Guidelines
- Select Mounting Location – Choose a stable surface with easy access
- Install Sockets – Fit and secure four sockets into the allocated cutouts
- Wire the Components – Connect the wiring to labeled terminals, including proper earthing
- Mount the Box – Fix the enclosure securely using appropriate fasteners
- Test and Commission – Check all connections, insulation, and voltage continuity before activating
Why Choose Makewell Tech?
Makewell Tech is committed to delivering electrical products that meet the highest standards of safety, reliability, and industrial performance. The 4+1 Metal Socket Box is designed to simplify large-scale electrical distribution while offering the strength and flexibility needed in real-world industrial environments. With customizable layouts, rugged construction, and dependable performance, it is the preferred solution for professionals who value safety and system integrity.
