Technical data-sheet
MW-125 32A 5 PIN Wall Socket
Makewell Tech’s 32A 5 Pin Wall Socket delivers safe, high-capacity three-phase power connections for industrial and commercial installations. Built rugged for reliable performance.
The Makewell Tech 32A 5 Pin Wall Socket is engineered to deliver dependable, high-capacity power connections for demanding industrial and commercial applications. Whether you’re installing in a manufacturing plant, warehouse, or workshop, this heavy-duty wall socket ensures safe, efficient power delivery to your most critical equipment.
Designed for Heavy-Duty Use
Unlike standard wall outlets, this robust 32A 5 Pin Wall Socket is built to handle the high-current loads required by heavy machinery, motors, and three-phase systems. The 32-amp rating provides the capacity needed for continuous operation, supporting energy-intensive processes and reducing downtime.
Its durable housing is crafted from impact-resistant thermoplastic, protecting the internal connections against knocks, vibration, and temperature fluctuations. The secure contact system delivers stable, low-resistance connections to keep your equipment running safely and reliably.
Key Features and Benefits
- 32A High-Current Capacity
Easily supports three-phase power distribution to heavy-duty machines, industrial tools, and production systems. - 5 Pin Configuration
Features three phase pins (L1, L2, L3), neutral, and earth pins for balanced three-phase power and complete grounding protection. - Rugged Construction
High-grade thermoplastic housing resists impacts, wear, and environmental stress, making it ideal for demanding sites. - Splash-Proof Design
IP44 ingress protection safeguards against dust and splashes, supporting safe operation in semi-outdoor and industrial environments. - Secure Connection Mechanism
Precision-engineered contacts and a locking system create a firm fit with compatible plugs, reducing the risk of accidental disconnection. - User-Friendly Installation
Clear terminal markings and an ergonomic design simplify wiring and maintenance, saving time and reducing installation errors.
Typical Applications
The Makewell Tech 32A 5 Pin Wall Socket is trusted by professionals across industries, including:
- Manufacturing Plants: Distributing power to three-phase production equipment, conveyor systems, and heavy-duty machinery.
- Workshops: Running welders, compressors, and industrial tools.
- Warehouses: Operating chargers, material handling equipment, and automated systems.
- Construction Sites: Supplying safe, high-capacity connections for lighting, tools, and temporary distribution boards.
- Agriculture: Powering irrigation pumps, dryers, and processing equipment in rugged conditions.

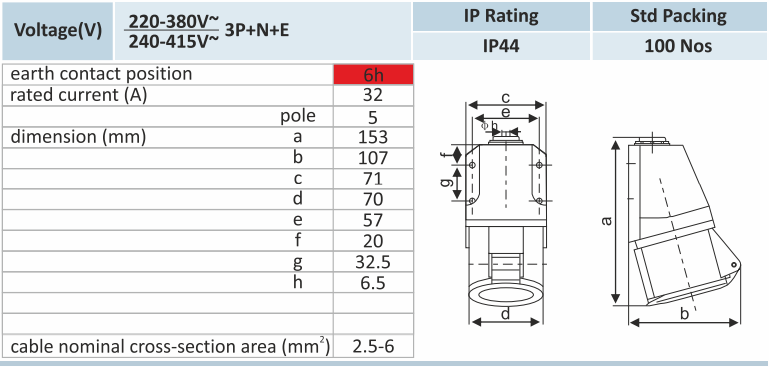

Technical Specifications
- Brand: Makewell Tech
- Current Rating: 32A
- Voltage: 380–415V (three-phase)
- Pins: 5 (3 phase + neutral + earth)
- Material: Impact-resistant thermoplastic
- Ingress Protection: IP44 or higher
- Operating Temperature: -25°C to +40°C
- Standards Compliance: IEC/EN 60309
- Mounting: Wall installation with secure fixing points
Easy Installation
Installing the Makewell Tech 32A 5 Pin Wall Socket is simple and reliable:
- Prepare the Wiring: Strip insulation to expose conductors.
- Connect the Terminals: Insert wires into clearly marked terminals (L1, L2, L3, N, E) and tighten screws securely.
- Mount the Socket: Secure it to a stable wall or panel using appropriate fasteners.
- Test the Connection: Use a continuity tester to confirm safe and correct wiring before use.
- Important: Installation should always be performed by a qualified electrician to comply with safety standards.
